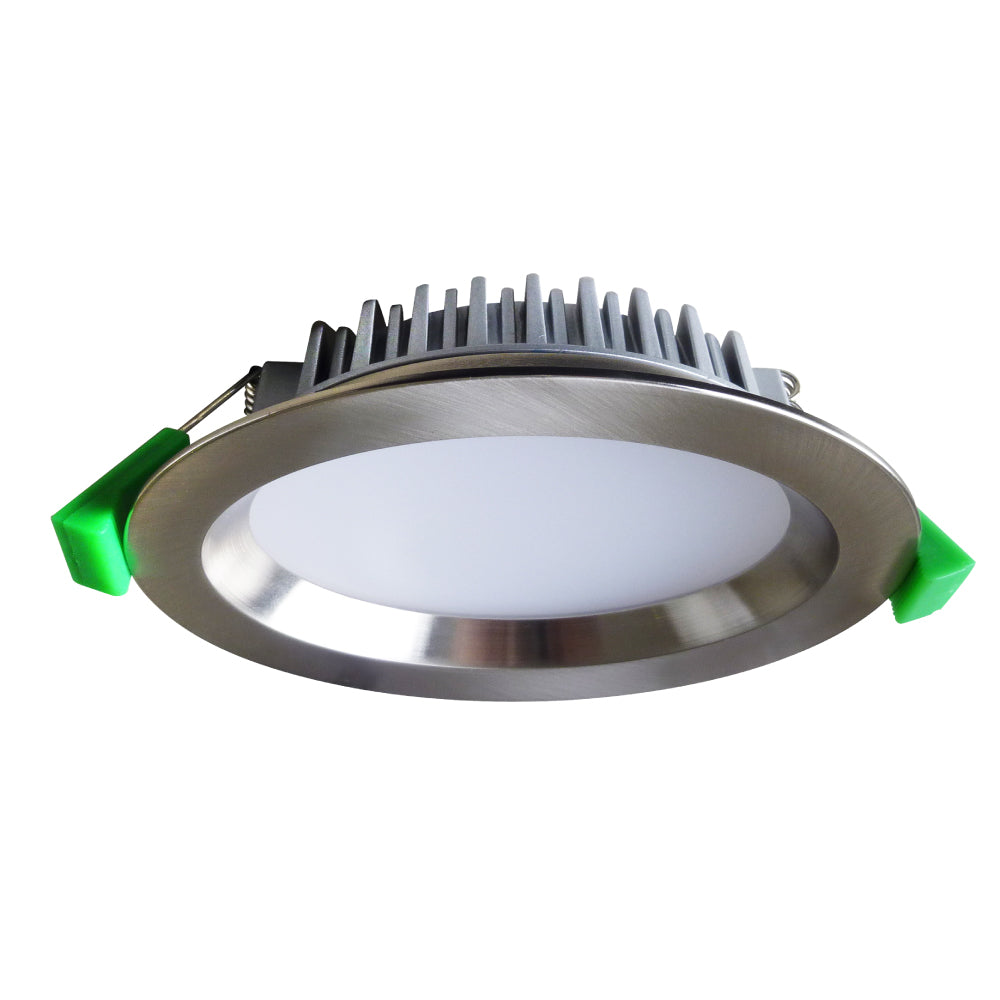

GEO20 - 20W Single Colour Temperature

Code: ICDLR20W3K-BCH

Colour: Brushed Chrome
Colour Temperature: 3000K
Log in to view pricing

Where to Buy

Downloads

  • Use:

    • Application - Residential & Commercial use
    • Use - Interior & Exterior
    • Warranty - 5 year
    • L70 - 54,000 hours
    • Switching Capacity - 30,000
    • IP Rating - IP44

    Power:
    • Voltage - 230V
    • Driver - Complete with coverable driver
    • Power Factor - > 0.9

    Light output:
    • Lamp Type – Integrated LED
    • Wattage - 20.3W (including the driver)
    • Lumens - 1877lm (3K), 2014lm (4K)
    • Colour Temperature - 3000K or 4000K
    • CRI - >80
    • Beam Angle - 90°
    • UGR Rating - <22
    • Dimmable - Yes
     Max ambient operating temperature: +45°C

    Product info:
    • Type - 20W Round Fixed Downlight
    • Material - Aluminium, corrosion resistant A6063 alloy

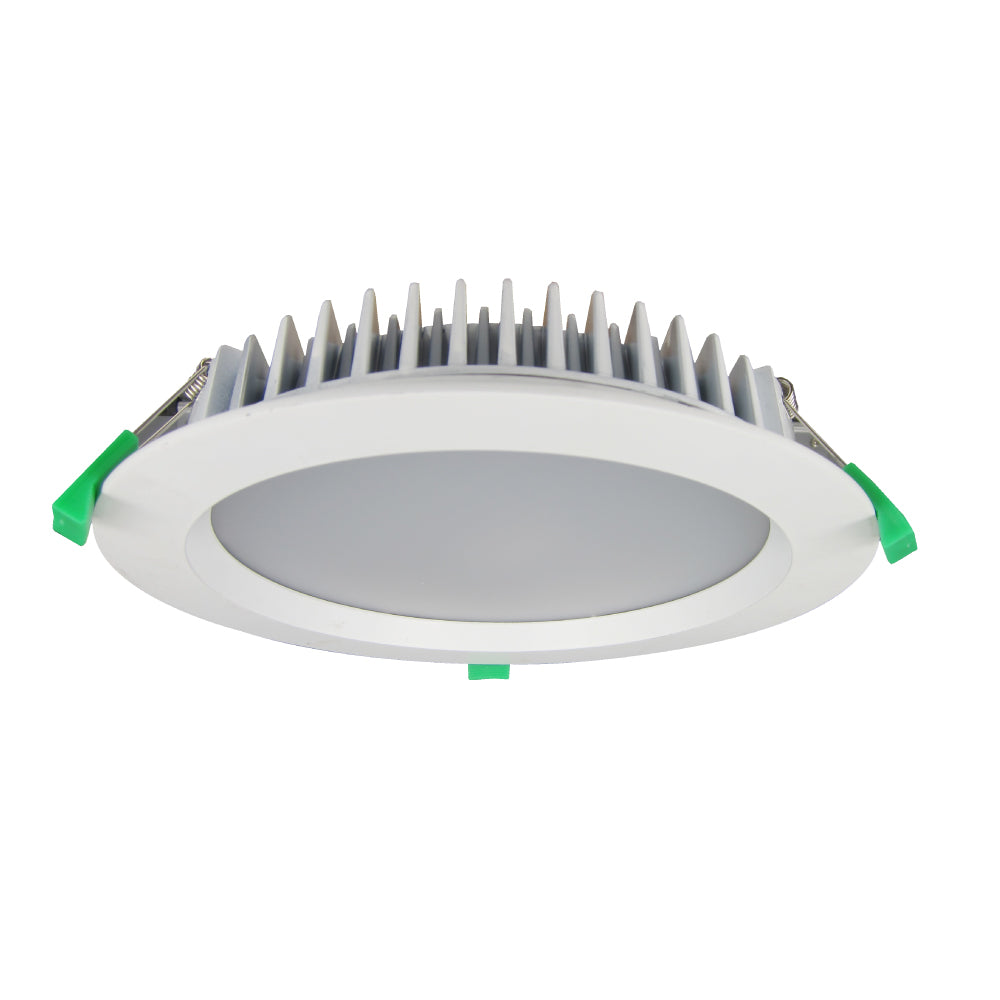

    • Colour - White or Brushed Chrome
    • Shape - Round
    • Mounting - Recessed

    Physical size:
    • Dimensions (mm) - 188 x 45H
    • Cut-out (mm) - From 154-168Ø
    • Rating - IC-F/IC-4

    *HCB: 0mm | *SCB: 0mm | Height of fitting: 45mm

    Product Reference:
    • Catalogue 2021 - Page 15
    • Catalogue 2022 - Page 93

    *HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install downlight. You must always allow for heat dissipation.

    Note: Brushed chrome models not suitable for exterior use and bathroom
