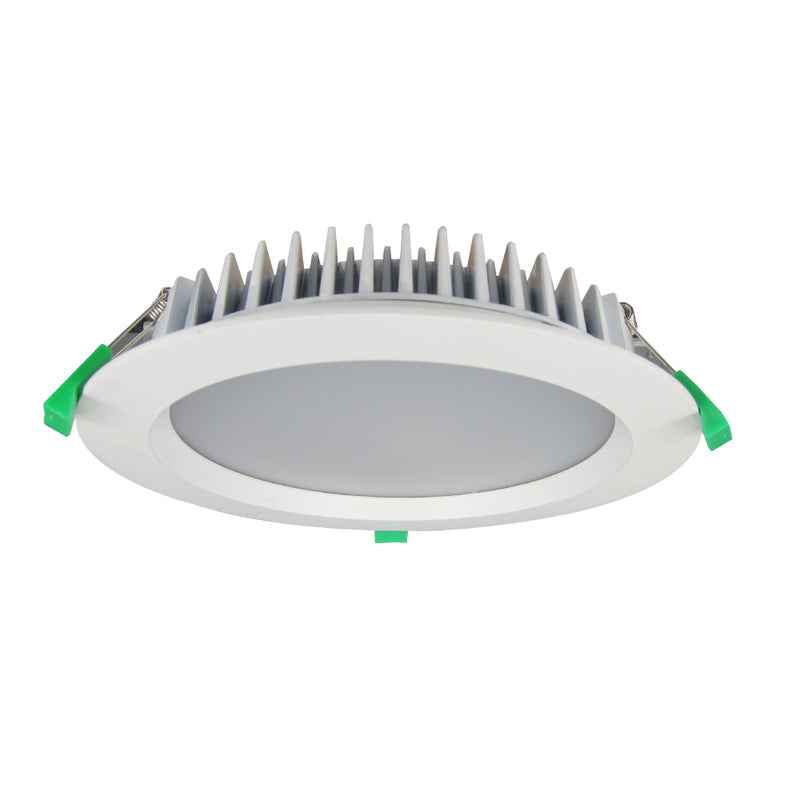

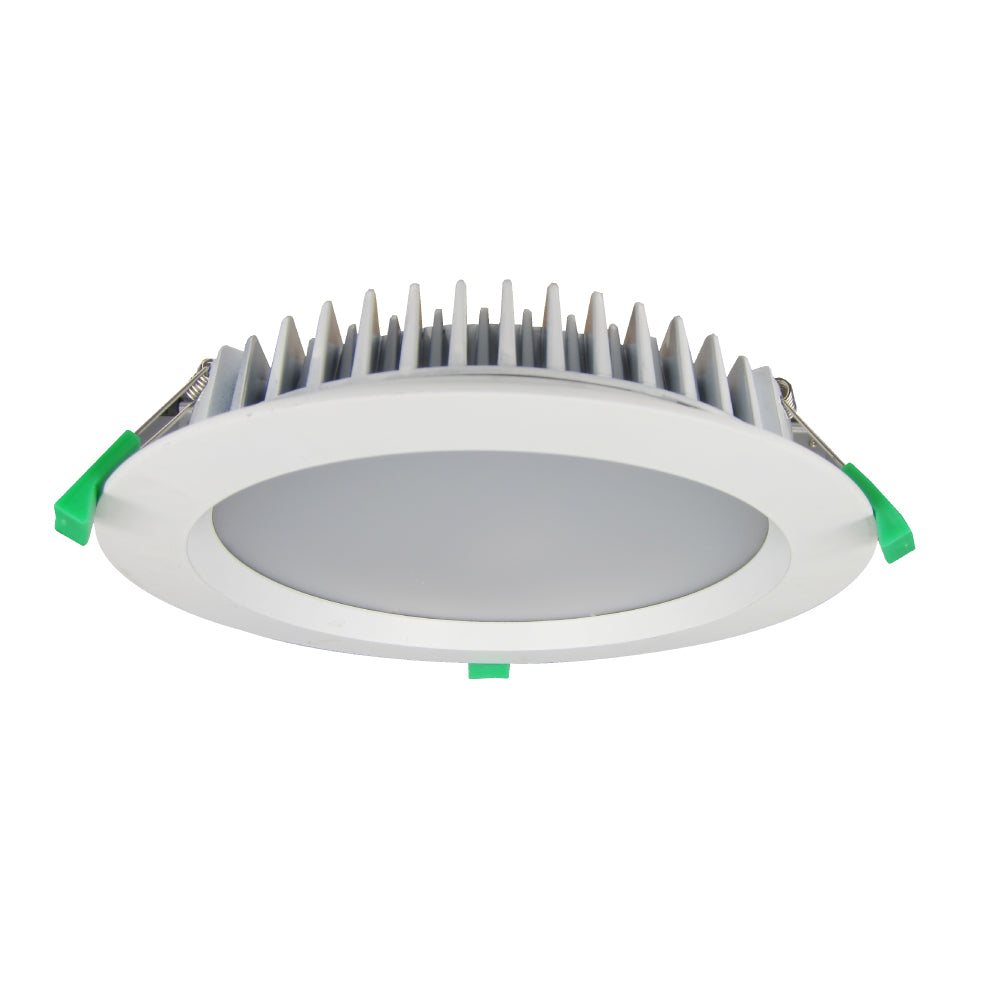

GEO40 - 40W Shop Downlight

Code: ICDLR40W4K-WH

Colour: White
Log in to view pricing

Where to Buy

Downloads

  • Use:

    • Application - Commercial use
    • Use - Interior
    • Warranty - 5 year
    • L70 - 54,000 hours
    • Switching Capacity - 30,000
    • IP Rating - IP44

    Power:
    • Voltage - 230V
    • Driver - Complete with separate non coverable driver
    • Power Factor - > 0.9

    Light output:
    • Lamp Type - Integrated LED
    • Wattage - 40.6W (including the driver)
    • Lumens - 4000lm
    • Colour Temperature - 4000K
    • CRI - >80
    • Beam Angle - 90°
    • Dimmable - Yes

    Product info:
    • Type - 40W Round Fixed Shop Downlight
    • Material - Aluminium, corrosion resistant A6063 alloy
    • Colour - White
    • Shape - Round
    • Mounting - Recessed

    Physical size:
    • Dimensions - 228Ømm x 45mmHeight
    • Cut-out - From 195-200Ømm
    • Rating - IC-F/IC-4

    Product Reference:
    • Catalogue 2022 - Page 94

    *HCB: 260mm | *SCB: 25mm | Height of fitting: 45mm

    *HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install downlight. You must always allow for heat dissipation.
