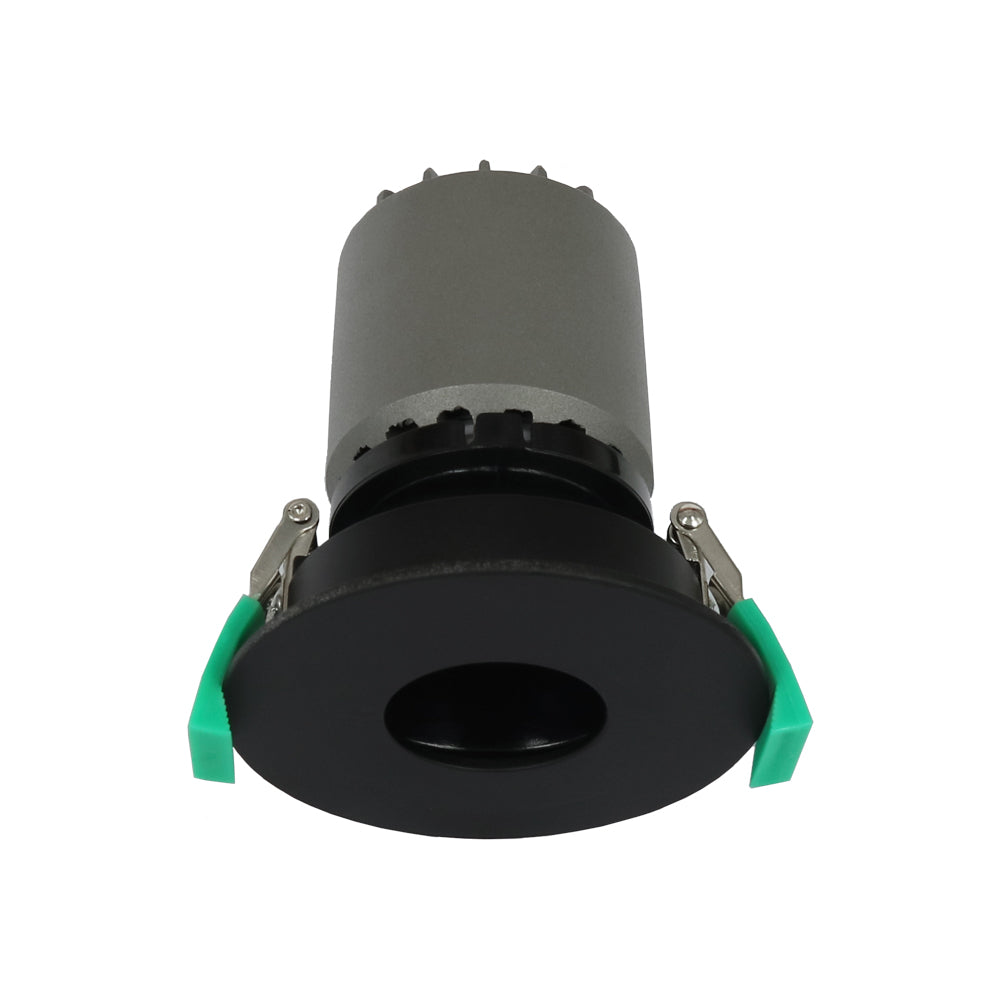

Allure A502 - Pinhole Downlight

Code: PHDL10WCCT-BLK

Colour: Black
CRI: > 80
Log in to view pricing

Description

Use:
• Application - Residential use
• Use - Interior
• Warranty - 5 Years
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP20

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - > 0.9

Light output:
• Lamp Type - Integrated LED
• Wattage - 10W
• Lumens (CRI - > 80) - 600lm (3000K) | 680lm (4000K) | 630lm (6000K)
• Lumens (CRI - > 90) - 510lm (3000K) | 575lm (4000K) | 535lm (6000K)
• Colour Temperature - 3000K | 4000K | 6000K (Change the colour temperature using the switch on the driver)
• CRI - > 80 / > 90
• Beam Angle - 30°
• Dimmable - Yes

Product info:
• Type - Pinhole Downlight
• Choose between Warm White (3K), Cool White (4K) & Daylight (6K) to suit application use.
• Change the colour temperature using the switch on the driver.
• Material - Aluminium
• Colour - White or Black
• Shape - Round
• Mounting - Recessed

Physical size:
• Dimensions - 85Ømm x 92mmHeight
• Cut-out - 68Ømm
• Rating - IC-F/IC-4
