GeoLED downlights are a general-purpose range of downlights. Perfect for task lighting installations in either residential or commercial situations.

Use the GeoLED range in new or retro fit builds. Available in warm, natural, or cool white colour temperature options to allow you to easily enhance your space and create the ambience to suit.

A large size connector block paired with a removable/replaceable driver makes installation and maintenance a breeze.

The powder coated aluminium body offers a sleek look, whilst the PPMA diffuser casts a smooth distribution of light.

• Material - Aluminium
• Colour - White
• Shape - Round

Use:
• Application - Residential use
• Type - 12W Low Glare CCT Downlight
• Use - Interior
• Warranty - 5 Years
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44
• Rating - IC-F/IC-4

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - > 0.9

Light output:
• Lamp Type - Integrated LED
• Wattage - 12W

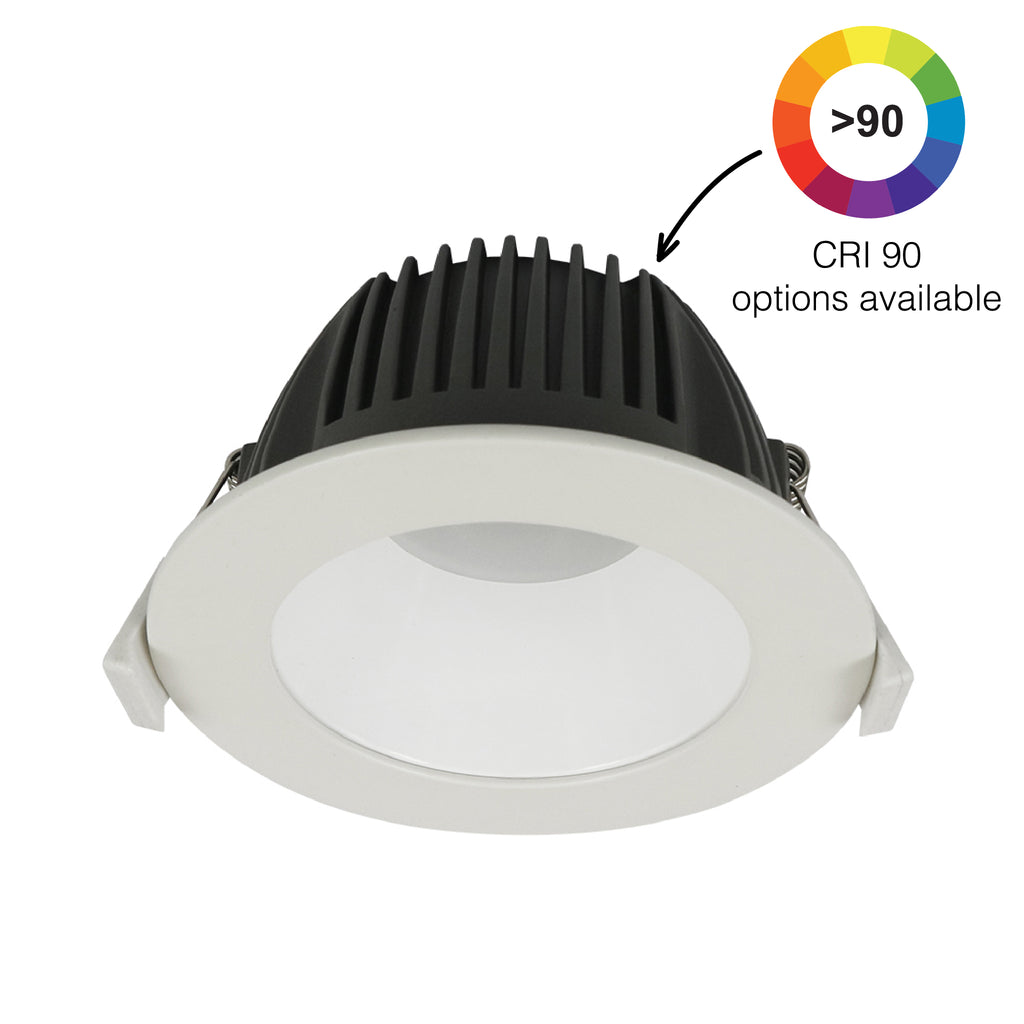

• Lumens (CRI - > 80) - 816lm (3000K) | 900lm (4000K) | 840lm (6500K)
• Lumens (CRI - > 90) - 700lm (3000K) | 765lm (4000K) | 715lm (6500K)
• Colour Temperature - 3000K | 4000K | 6500K
• CRI - > 80
• Beam Angle - 75°
• Dimmable - Yes

Product info:
• Choose between Warm White (3K), Cool White (4K) & Daylight (6.5K) to suit application use.
• Change the colour temperature using the switch on the driver.

Physical size:
• Dimensions - 105Ømm x 60mmH
• Cut-out - 85Ømm

Product Reference:
• Catalogue 2021 - Page 10
• Catalogue 2022 - Page 99

• Mounting - Recessed
• Cut-out - 85Ømm
