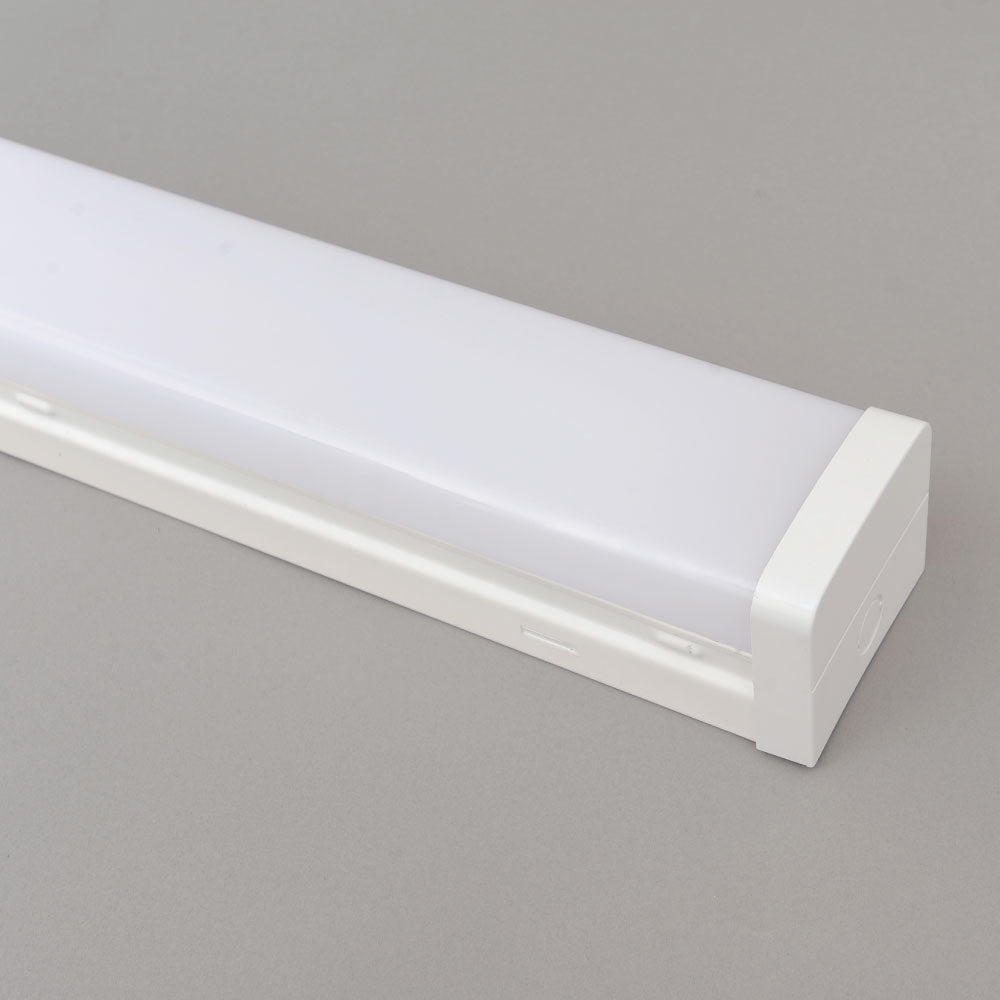

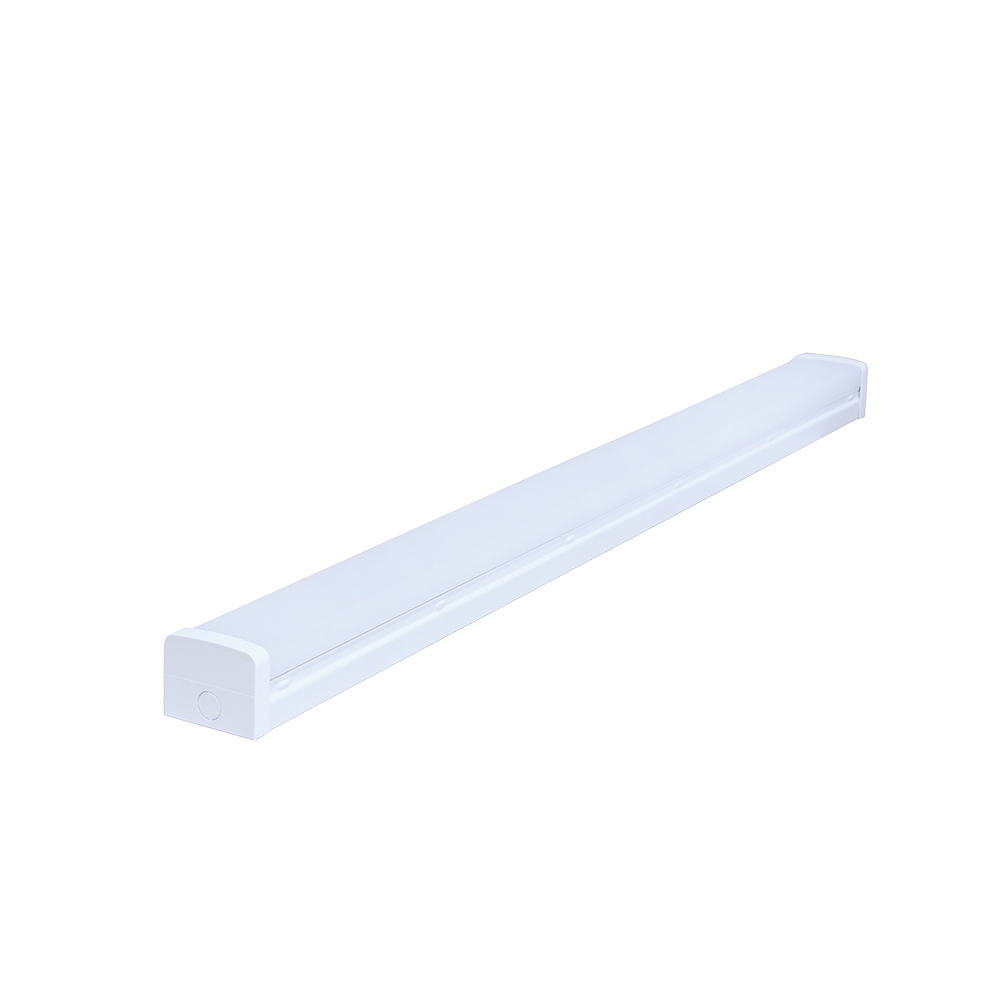

Dylan - 4FT LED Batten

Code: LEDBATTEN40W6K

Colour Temperature: 6500K
Colour: White
Log in to view pricing

Where to Buy

Downloads

  • The Dylan has been designed to replace conventional fluorescent batten lights.  The batten is  double insulated, making it perfect for older style New Zealand buildings that don’t have an earth.

    Centralised cable entry and conduit entry points, combined with a screw through base design offers a flexible fit off for installers.

    Its high spec Boke driver ensures performance longevity in either a commercial or residential environment.

    Available in two sizes 5 foot (1500mm) & 4 foot (1200mm) and 4K single colour temperature.

  • Product info:
    • Material - Aluminium + Iron + PC
    • Optical Cover/Lens Type - Opal
    • Connection - Push-lock terminal
    • End caps - 20mm knockout for conduit of cable glands
    • Module is completely sealed eliminating any insect build up
    • Colour – White
    • Shape - Square
    • Mounting - Surface
    • IK rating - IK08

  • Use:
    • Application - Commercial
    • Use - Interior
    • Warranty - 5 Years
    • L70 – 50,000 hours
    • IP Rating - IP40
    • Operating temp - -20°C > + 50°C

    Power:
    • Voltage - 220 - 240V
    • Driver - Built in
    • Double Insulated - Yes
    • Power Factor - > 0.95
    • Power Consumption Tolerance - +/-10%
    • Input Frequency - 50/60HZ

    Light output:
    • Lamp Type – Integrated LED
    • Wattage - 40W
    • Lumens - 3800lm or 4000lm
    • Colour Temperature - 4000K or 6500K
    • CRI - >80
    • Beam Angle - 120°
    • UGR Rating - <19
    • Dimmable - No

    Product info:
    • Type - LED Batten
    • Material - Aluminium + Iron + PC
    • Optical Cover/Lens Type - Opal
    • Connection - Push-lock terminal
    • End caps - 20mm knockout for conduit of cable glands
    • Module is completely sealed eliminating any insect build up
    • Colour – White
    • Shape - Square
    • Mounting - Surface
    • IK rating - IK08


    Physical size:
    • Dimensions - 1200L x 80W x 65D

    Suitable Applications:
    - General Lighting
    - Supermarkets
    - Indoor Parking
    - Retail Stores
    - Exhibition Halls
    - Office Buildings
    - Factories
    - Warehousing

    Product Reference:
    • Catalogue 2021 - Page 38
    Catalogue 2022 - Page 07



  • • IK rating - IK08

    • Dimensions - 1200L x 80W x 65D

    • Mounting - Surface

    • IP20
