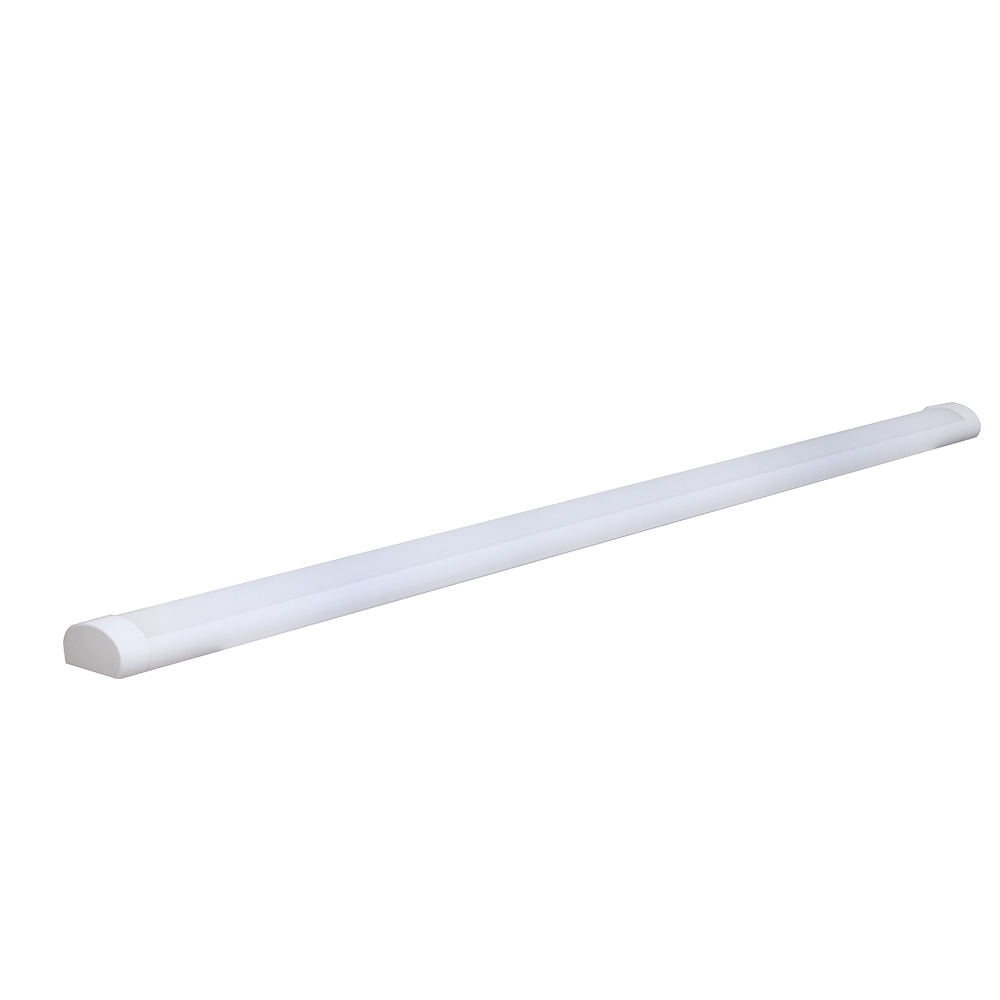

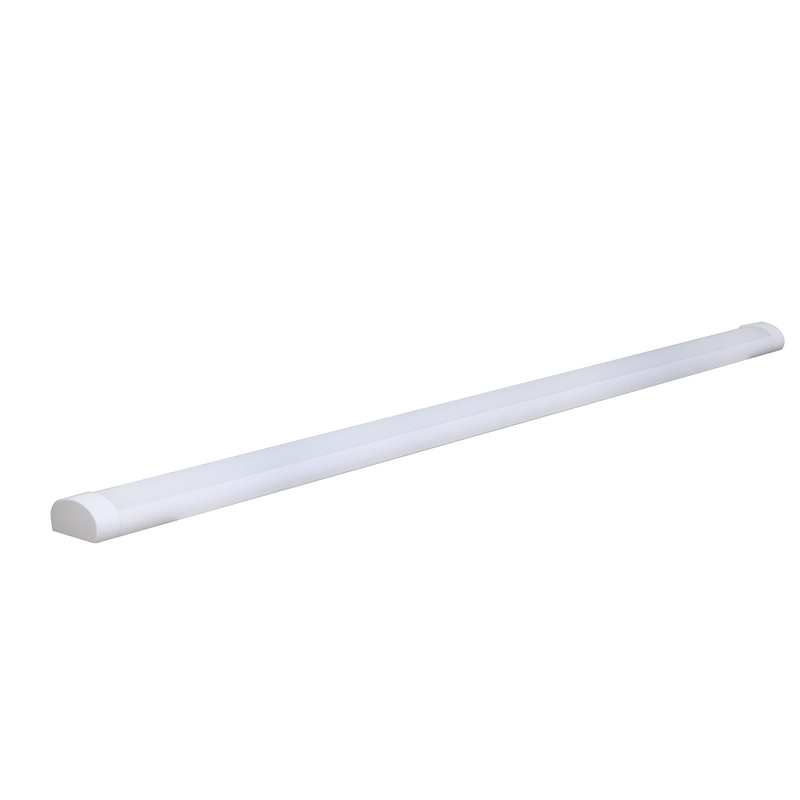

Sarah - 5FT Slim LED Batten

Code: SLIMBATTEN50W6K

Colour Temperature: 6500K
Colour: White
Log in to view pricing

Where to Buy

Downloads

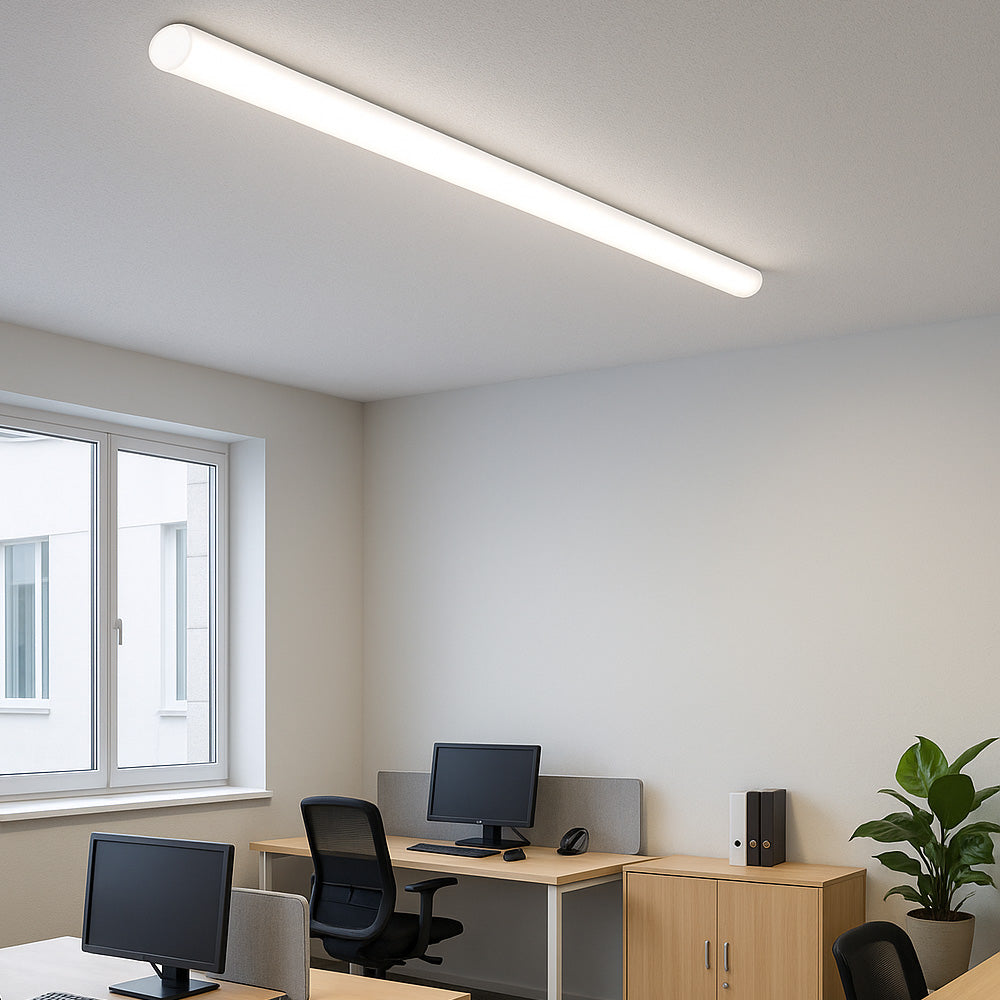

  • Sarah slim LED Batten has two size options: 4ft and 5ft. It is designed for indoor commercial use and has an IP40 rating, meaning it is protected against solid objects larger than 1mm and is protected against splashing water. It has an integrated LED lamp, which means that the LED light source is built into the fixture, providing energy efficiency and long-lasting performance. The slim design of the batten allows it to be easily installed in a variety of settings and spaces, and can be an ideal lighting solution for commercial interiors such as offices, retail spaces, and schools.
  • • Material - Aluminium + Iron + PC
    • Optical Cover/Lens Type - Opal
    • Colour – White

  • Use:

    • Application - Commercial
    • Use - Interior
    • Warranty - 3 Years
    • L70 – 50,000 hours
    • IP Rating - IP40
    • Operating temp - -20°C > + 50°C

    Power:
    • Voltage - 220 - 240V
    • Driver - Built in
    • Double Insulated - No
    • Power Factor - > 0.95
    • Power Consumption Tolerance - +/-10%
    • Input Frequency - 50/60HZ

    Light output:
    • Lamp Type – Integrated LED
    • Wattage - 50W
    • Lumens - 5900lm | 6000lm
    • Colour Temperature - 4000K | 6500K
    • CRI - >80
    • Beam Angle - 120°
    • UGR Rating - < 25
    • Dimmable - No

    Product info:
    • Type - LED Batten
    • IK rating - IK08


    Physical size:
    • Dimensions - 1500 x 80 x 43

    Product Reference:
    • Catalogue 2021 - Page 41
    • Catalogue 2022 - Page 09

  • • Mounting - Surface
    Flush mount clip system designed to eliminate the gap between the back of each fitting, to the surface they are installed on. By creating flush mounted clips, we can eliminate excess shadowing cast from the body of each fitting. Having a true flush mount clip system with our slim battens creates a clean sleek look when installed/fitted onto flat surfaces.
    Central rear cable entry point was a “must have” feature when creating our slim battens. We have taken install times into consideration to ensure our range of slim battens can be installed efficiently. Each fitting has a recessed channel along back of fitting to provide cable entry along entire fitting, also allowing for excess cable to be hidden.
