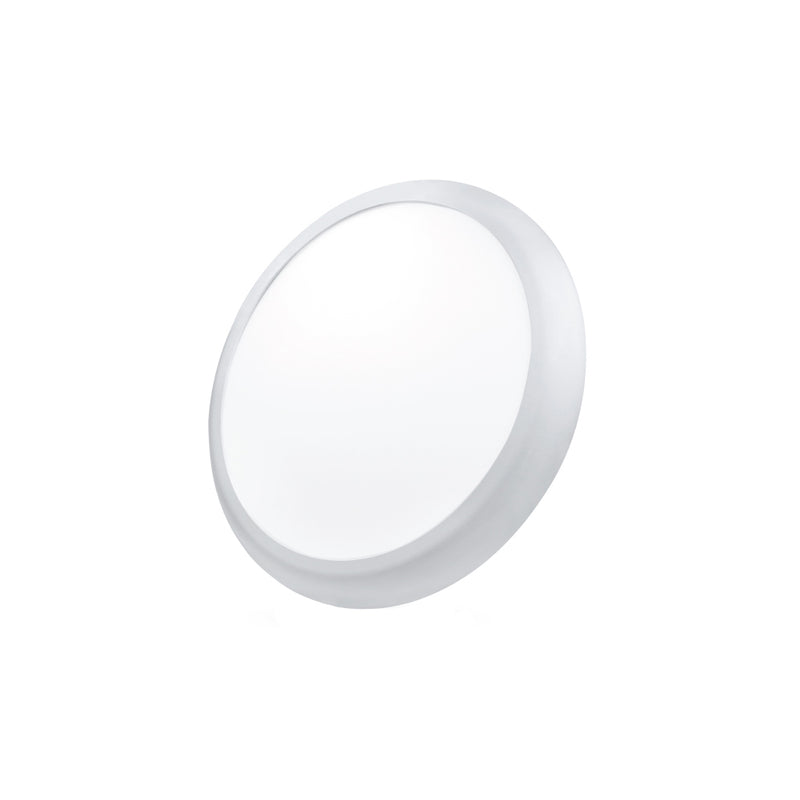

SlimB-230 Button

Code: SLIMB230-4K

Colour Temperature: 4000K
Colour: White
Log in to view pricing

Where to Buy

Downloads

  • The Ultra Slimline SlimB Button is a modern and minimalist lighting solution that is perfect for any room. It comes in three size options: Ø180 mm, Ø230 mm, and Ø330 mm, and is dimmable, allowing you to adjust the brightness to your desired level. The slimline design of the SlimB button makes it perfect for low-profile lighting applications and it can blend seamlessly into any room's decor.

  • • Material - Polycarbonate + Aluminium
    • Colour - White
    • Shape - Round

  • Use:
    • Application - Residential use
    • Use - Interior
    • Warranty - 3 year
    • L70 - 30,000 hours
    • Switching Capacity - 15,000
    • IP Rating - IP20
    • Operating Temp - -20°C to 50°C

    Power:
    • Voltage - 230V
    • Driver - built in
    • Double Insulated - Yes
    • Complete with 300mm pre-wired cable attached.

    Light output:
    • Lamp Type - Integrated LED
    • Wattage - 18W
    • Lumens - 1200lm or 1300lm
    • Colour Temperature - 3000K or 4000K
    • CRI - >80
    • Beam Angle - 110°
    • UGR Rating - <19
    • Dimmable - Yes

    Product info:
    • Type - LED Ceiling Button
    • IK Rating - IK04

    Physical size:
    • Dimensions - 230Ø x 15mm
    • Cut-out - 65-205mm
    • Adjustable spring clips provide recessed solutions for cut-out sizes: 65Ø-155Ø.

    Product Reference:
    • Catalogue 2021 - Page 59
    • Catalogue 2022 - Page 50

    2 in 1 quick installation / can be used as a surface-mounted or recessed luminaire.

  • • Mounting - Surface mounted or recessed mounted
