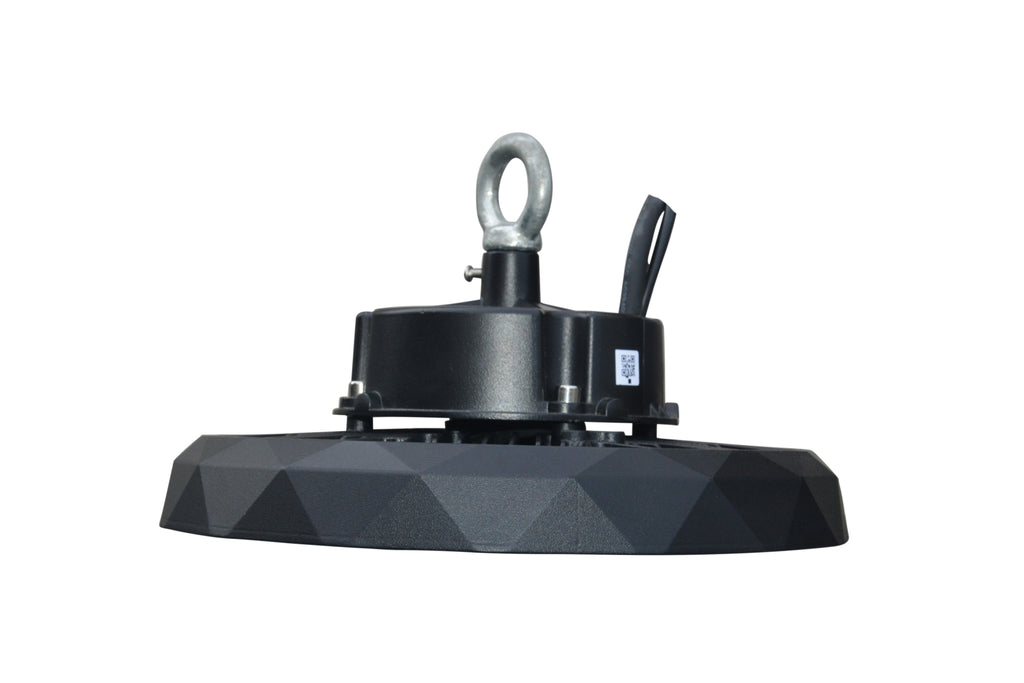

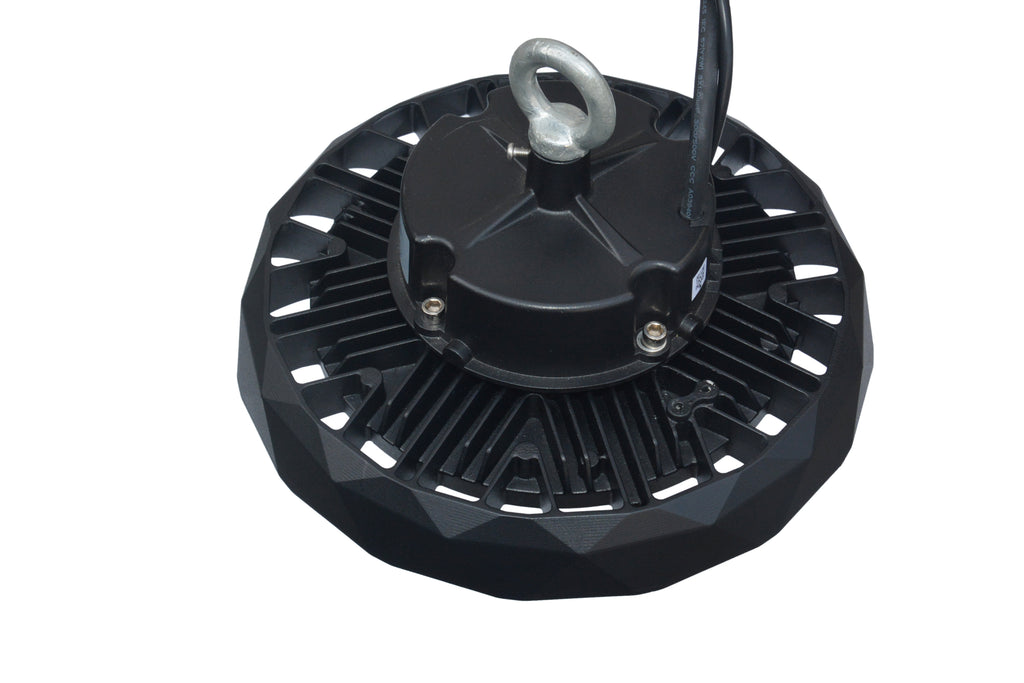

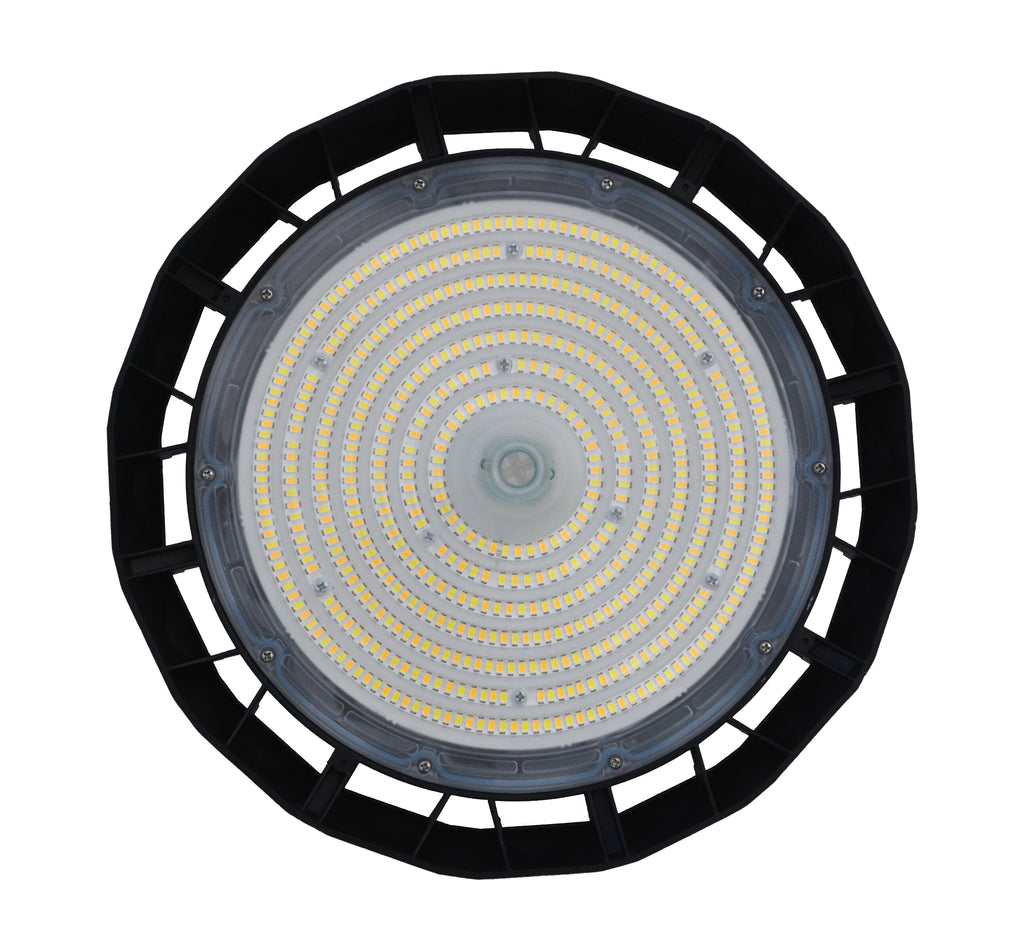

Pluto Highbay

New
Code: PLUTOHB

Log in to view pricing

Where To Buy

Downloads

  • • Material: Aluminum
  • Pluto Highbay CCT / Wattage Selectable

    Features:

    • 3x Colour Temperature Selectable
    • 3x Wattage Selectable

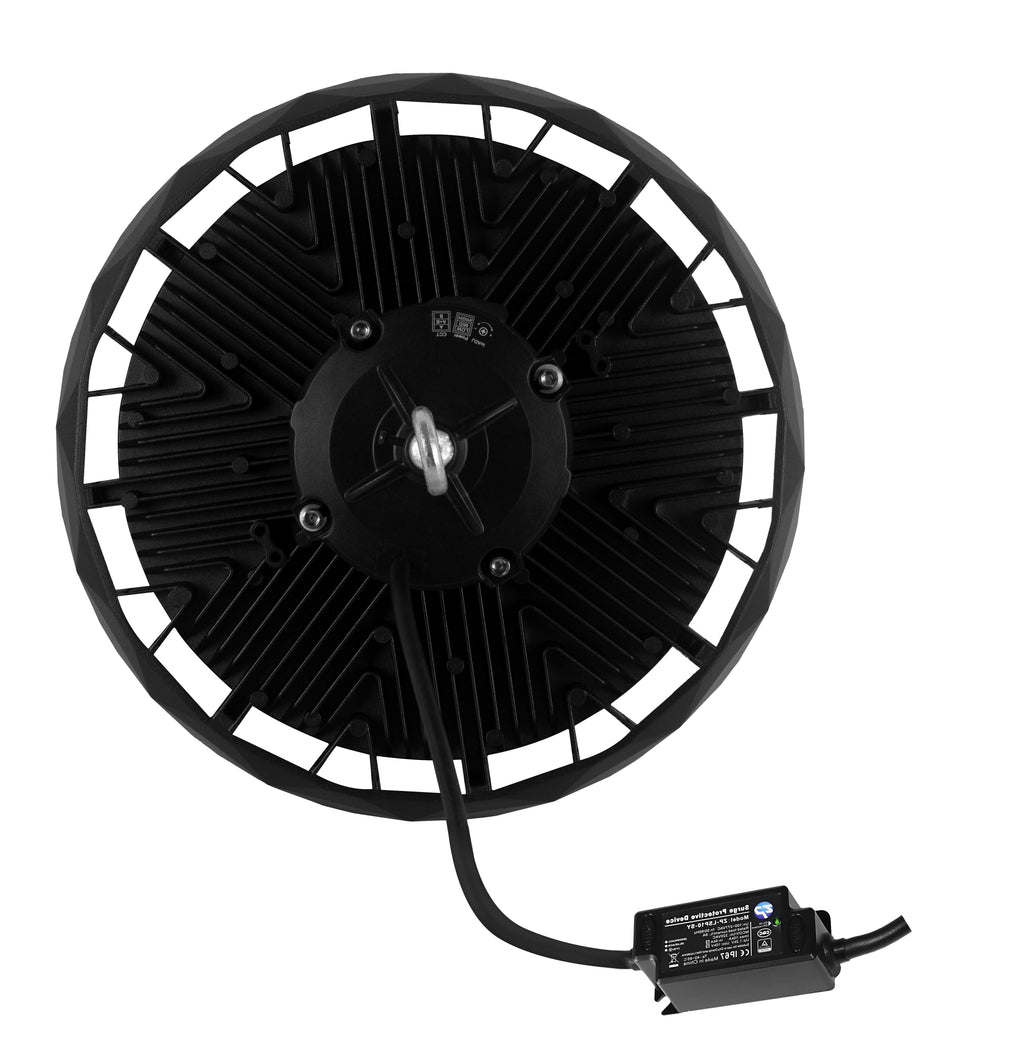

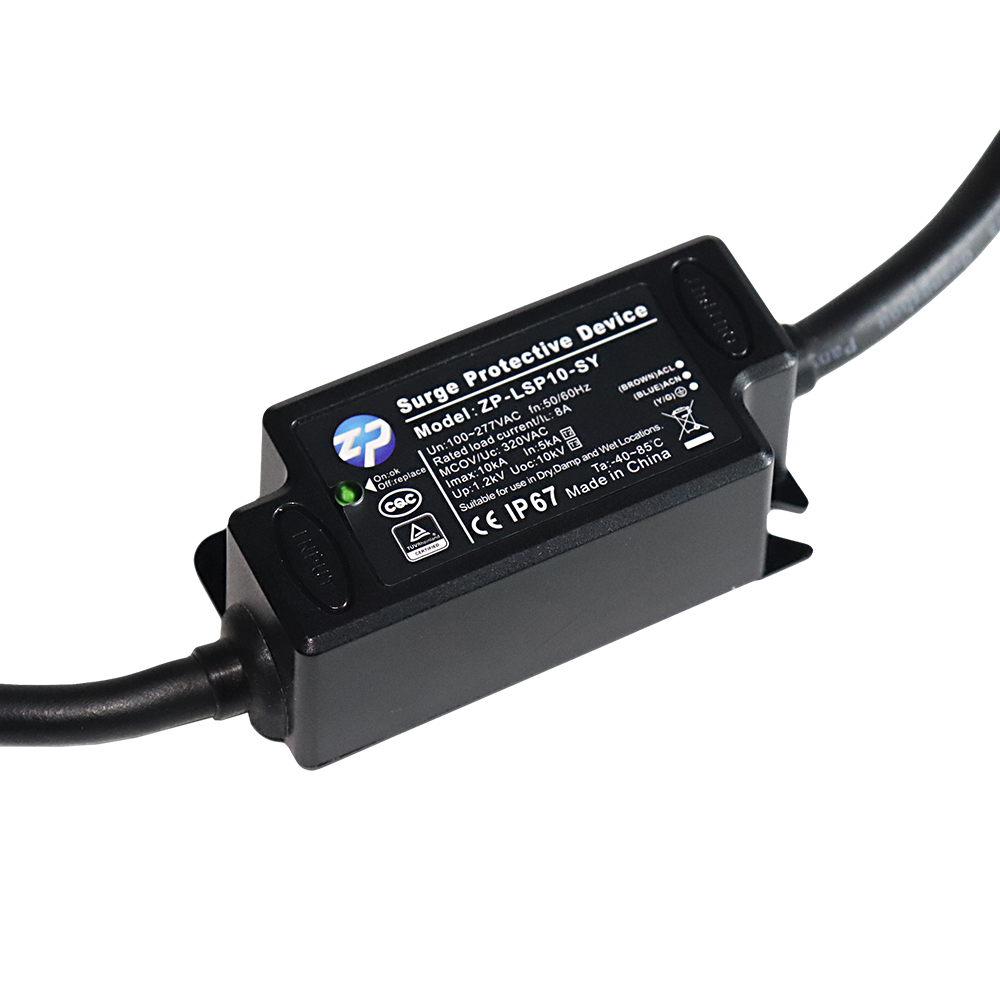

    • Replaceable Surge Protection Device (SPD) 10kV
    • 2m cord, with NZ plug

    Specification:

    • Voltage – 230V
    • IP Rating - IP65
    • IKRating – IK08
    • Lamp Technology – LED
    • Beam angle - 90°
    • Lamp Life: L70 50,000
    • CCT Switchable - 4000K | 5000K | 6000K
    • Lumen efficacy 170lm/w (+/-5%)
    • refer to photometric files for lumens per colour temp/wattage
    • Wattage Selectable - 200W | 160W | 120W
    • SPD specification:10kV, full specification supplied on request.
    • Weight: 2.7KG (3.2kg with diffuser)
    • 2m cord supplied with NZ plug fitted.
    • Ambient temperature range: -20℃- 40℃

    Physical size:

    • φ330*152mm

    Accessories available:

    • Sensor (PLUTOSENSOR) sold separately
    • Sensor Remote (PLUTOREMOTE) sold separately
    • Diffuser (PLUTODIFFUSER) sold separately





  • Installation: • Fixation: Horizontal in 90°with M10 hook • Mounting height: up to 15 meter high
