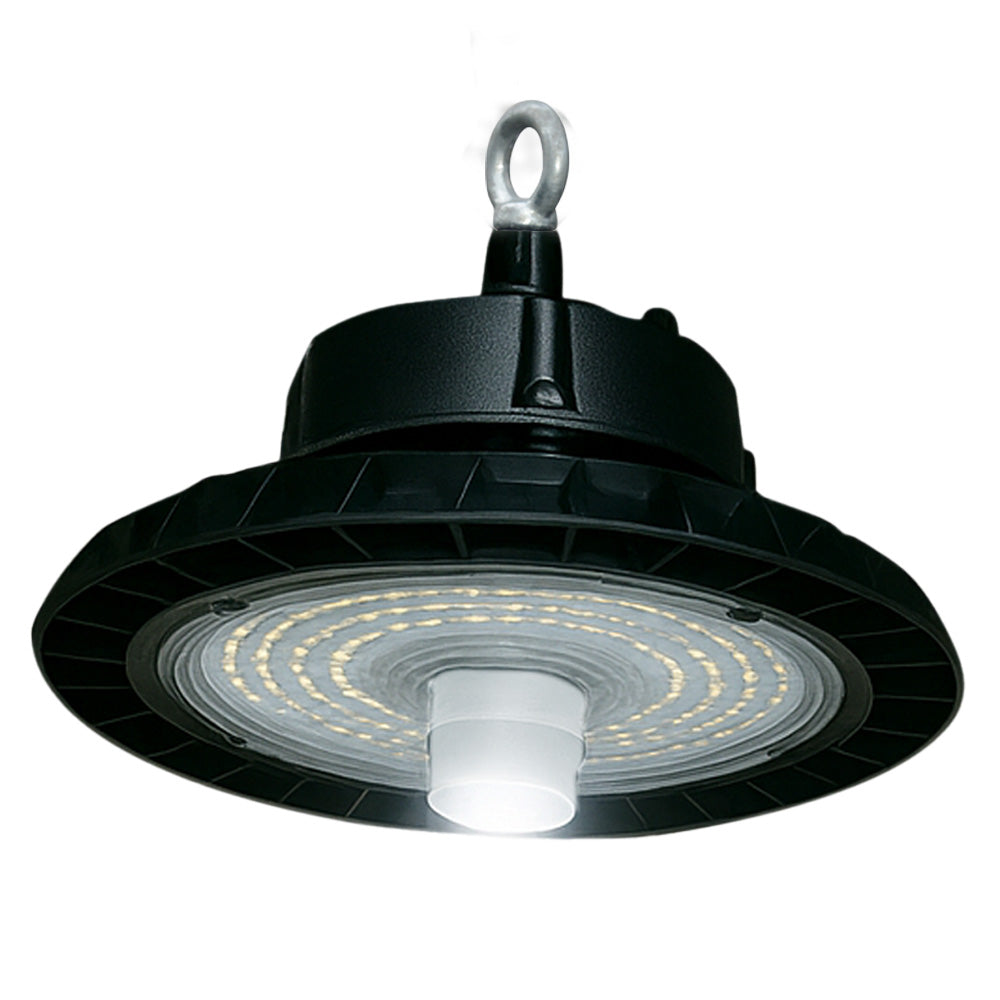

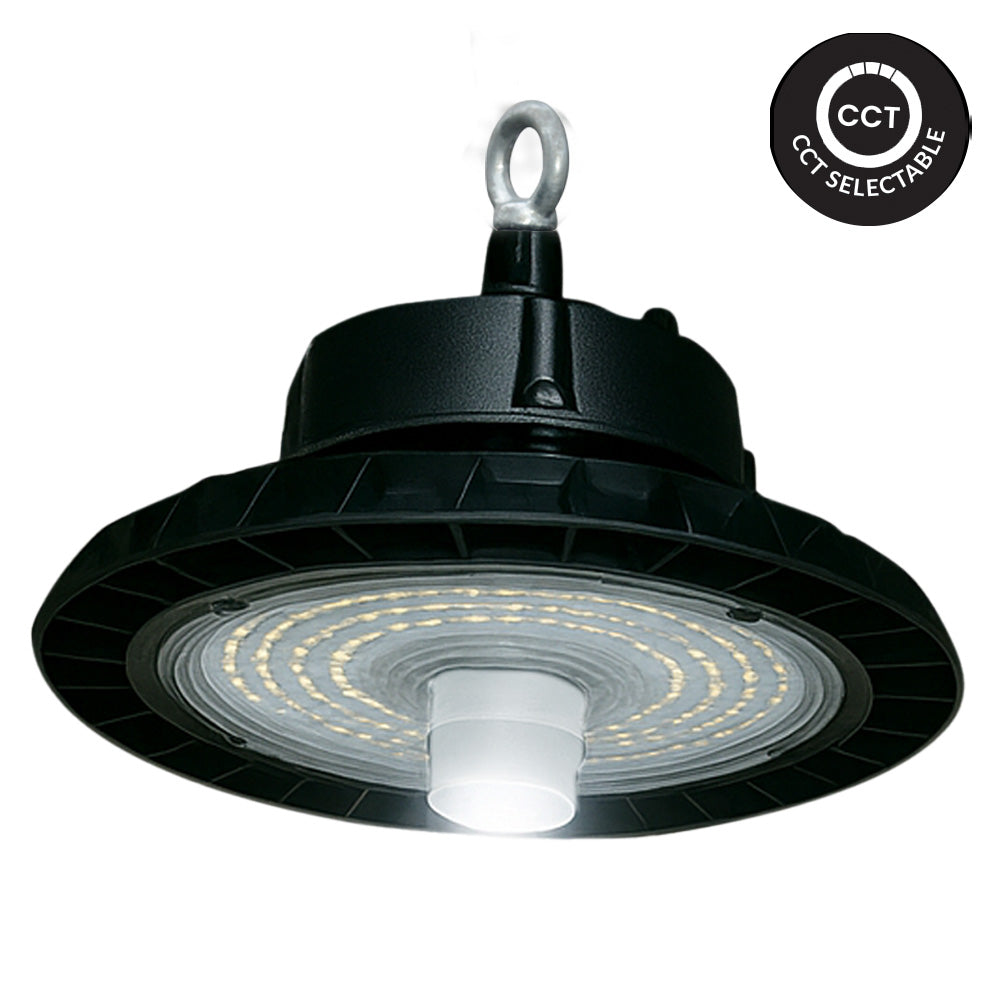

Pluto+ Highbay with Sensor

New
Code: PLUTO+

Log in to view pricing

Where To Buy

Downloads

  • Features:

    • Removable microwave Sensor
    • 3x Colour Temperature Selectable
    • 3x Wattage Selectable
    • Replaceable Surge Protection Device (SPD) 10kV
    • 2m cord, with NZ plug

    Specification:

    • Voltage – 230V
    • IP Rating - IP65
    • IKRating – IK08
    • Lamp Technology – LED
    • Beam angle - 90° with PC Lens
    • Lamp Life: L70 50,000
    • CCT Switchable - 4000K | 5000K | 6000K
    • Lumen efficacy 170lm/w (+/-5%)
    • Refer to photometric files for lumens per colour temp/wattage
    • Wattage Selectable - 200W | 160W | 120W
    • SPD specification:10kV, full specification supplied on request.
    • Weight: 2.7KG (3.2kg with diffuser)
    • 2m cord supplied with NZ plug fitted.
    • Ambient temperature range: -20℃- 40℃

    Physical size:

    • φ330*182mm (152mm without sensor + 30mm Sensor)

    Accessories available:

    • Sensor (PLUTOSENSOR)
    • Sensor Remote (PLUTOREMOTE) sold separately
    • Diffuser (PLUTODIFFUSER) sold separately

    Sensor Specification:

    • Maximum Mounting Height: 12 Meters
    • Sensor Detection Radius: (1-8m )
    • Time Setting: 10s - 60min
    • Brightness Control: 70-100%
    • Daylight Sensor: 100-500lm
    • Ambient temperature range: -20℃- 40℃
    • *We recommend at least 1x remote per 20 high bays.
