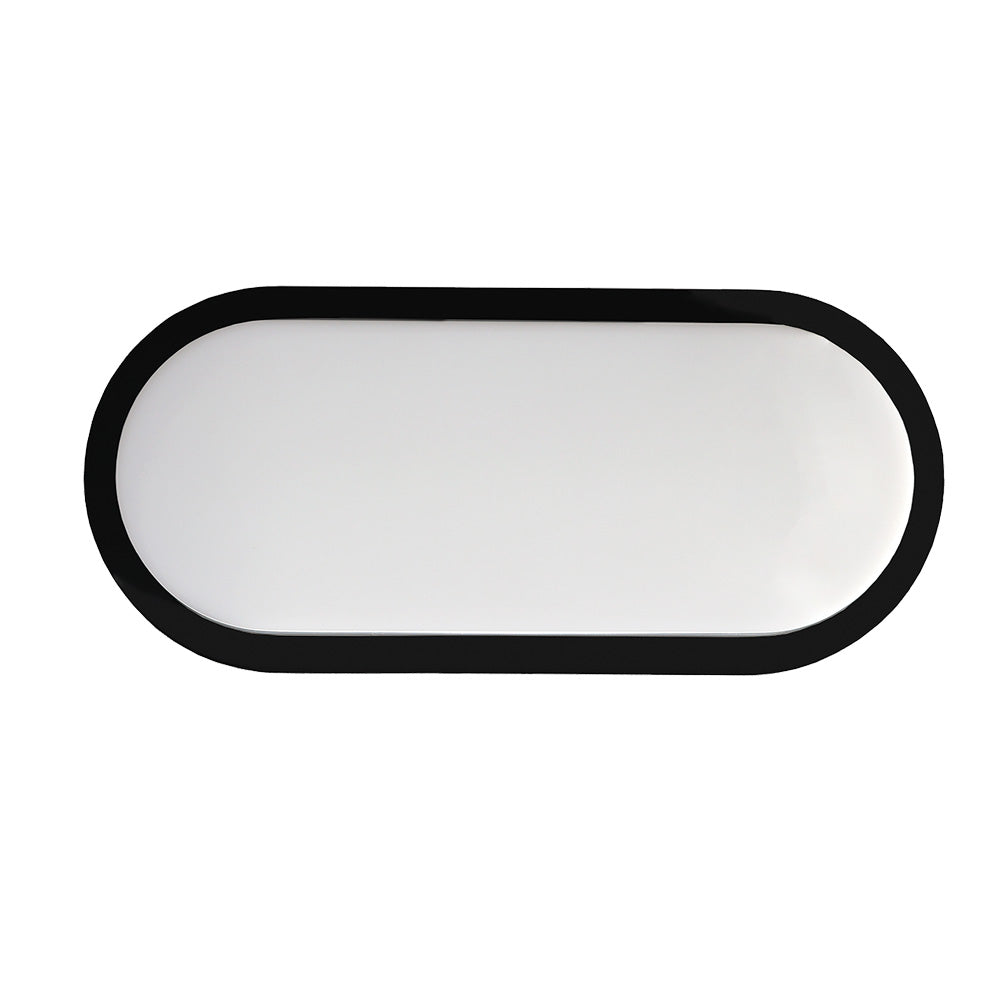

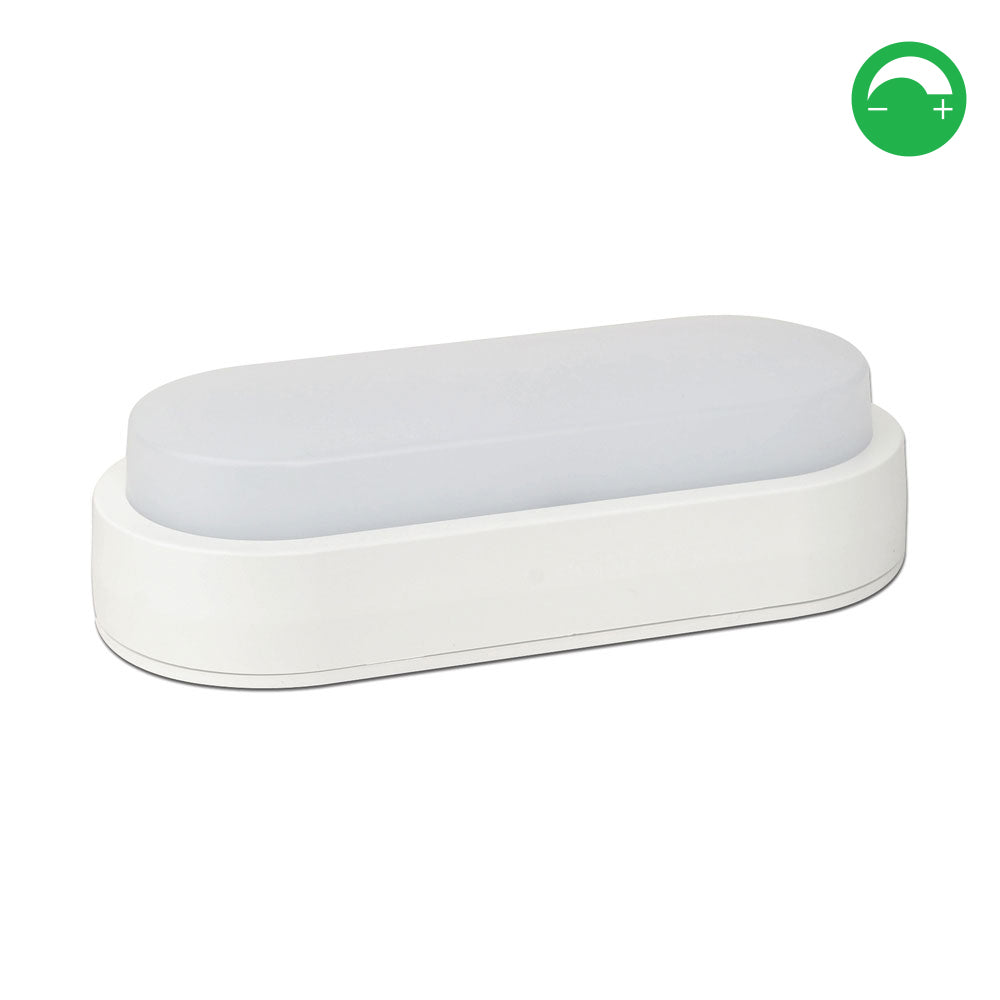

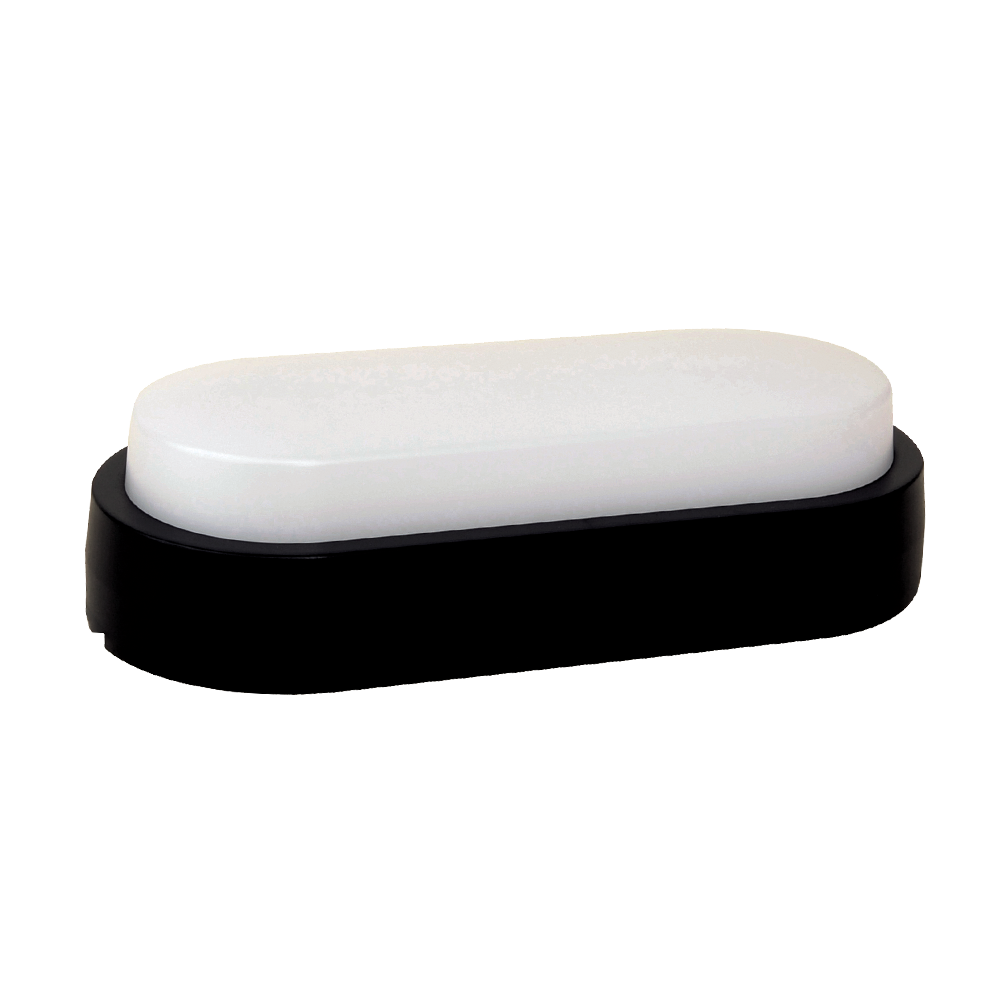

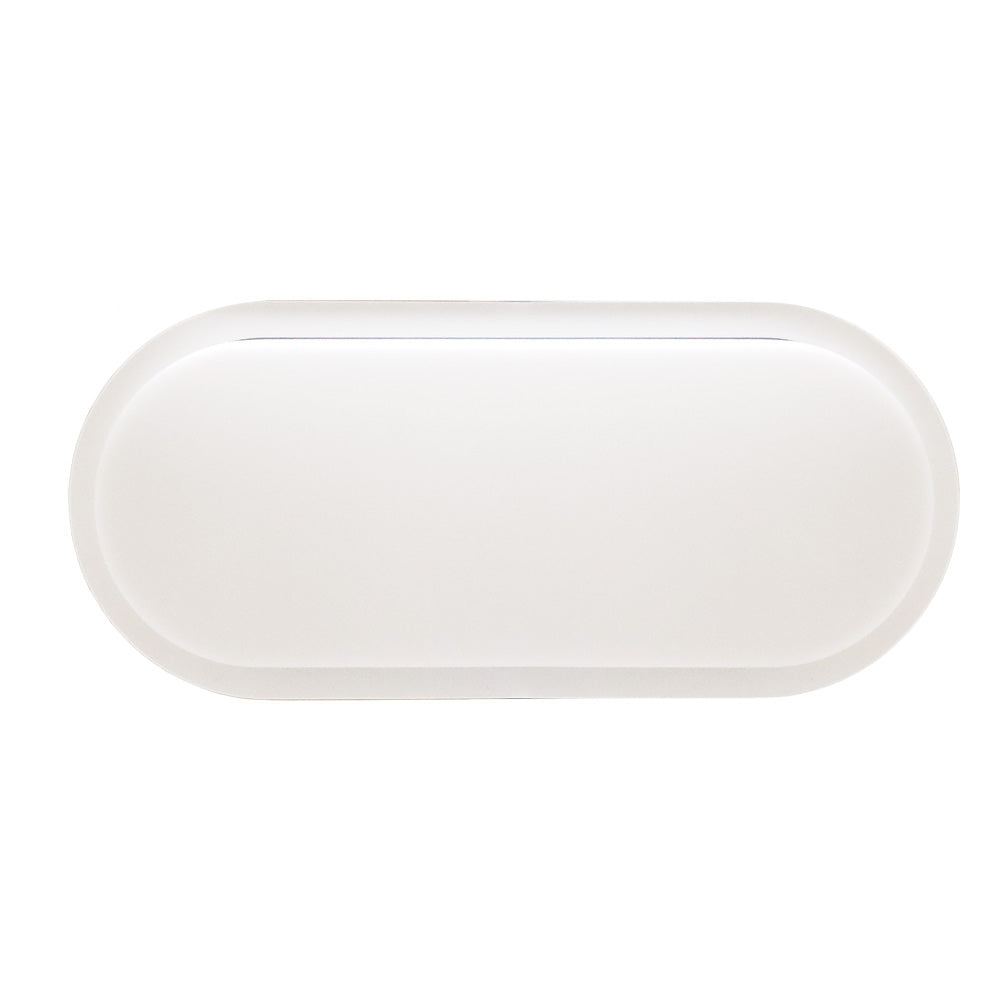

The Ovate polycarbonate bulkhead family are a versatile and cost-effective outdoor lighting option.  Crafted from UV-protected polycarbonate, with an IP rating of IP65. The Ovate bulkhead family are robust and durable in both residential and commercial environments.

UV polycarbonate is also non-corroding, giving excellent performance and service life in coastal locations.

Product Features:

• Dimmable Model
• Other models available: Plain, eyelid,  sensor, tri colour
• Suitable for coastal installations
• IP65 high exterior weather protection rating
• Available in two trim colours: White, Black
• Operating temperature -20 degrees through to 50 degrees Celsius.

• Material - UV resistant Polycarbonate
• Colour - White only

Use:
• Application - Residential & Commercial use
• Use - Exterior use
• Warranty - 5 year
• L70 - 30,000 hours
• Switching Capacity - 30,000
• IP Rating - IP65
• Operating Temp - -20°C to 50°C

Power:
• Voltage - 230V
• Driver - Built-in
• Double Insulated - Yes

Light output:
• Lamp Type - Integrated LED
• Wattage - 12W
• Lumens - 1050lm (3K)
• Colour Temperature - 3000K
• CRI - >80
• Beam Angle - 120°
• Dimmable - Yes

Product info:
• Material - UV resistant Polycarbonate
• Colour - White only
• Mounting - Surface mounted
• IK Rating - IK08

Physical size:
• Dimensions - 230W x 105H x 59D (Classic)
- 230W x 105H x 61D (Eyelid)

Product Reference:
• Catalogue 2021 - Page 44
•Catalogue 2022 - Page 22

• Mounting - Surface mounted
• Double Insulated
