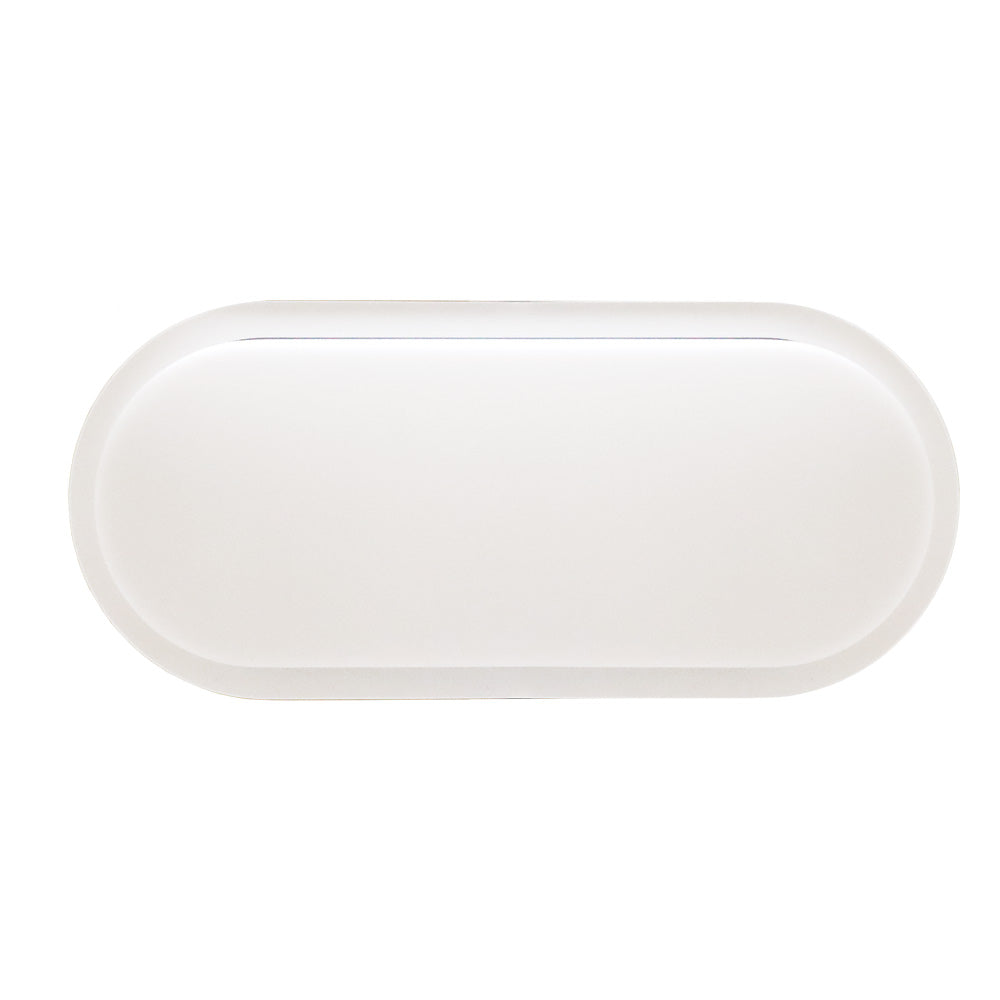

Ovate Classic - Plain Bulkhead

Code: YBH12W3K-WH

Colour: White
Colour Temperature: 3000K
Log in to view pricing

Where to Buy

Downloads

  • Use:
    • Application - Residential & Commercial use
    • Use - Exterior use
    • Warranty - 5 year
    • L70 - 30,000 hours
    • Switching Capacity - 30,000
    • IP Rating - IP65
    • Operating Temp - -20°C to 50°

    Power:
    • Voltage - 230V
    • Driver - built in
    • Double Insulated - Yes

    Light output:
    • Lamp Type – Integrated LED
    • Wattage - 12W
    • Lumens - 1030lm or 1050lm
    • Colour Temperature - 3000K or 4000K
    • CRI - >80
    • Beam Angle - 120°
    • UGR Rating - <19
    • Dimmable - No

    Product info:
    • Type - LED Plain Bulkhead
    • Material - UV resistant ABS + Poly-carbonate
    • Colour - White or Black
    • Mounting - Surface mounted
    • IK Rating - IK08

     Physical size:
    • Dimensions - 230 x 105 x 58.5mm
    • Fixing area - 230 x 105mm

     Product Reference:
    • Catalogue 2021 - Page 44
    • Catalogue 2022 - Page 21

    FAST INSTALL: No need to remove the diffuser/LED module from the mounting base before fitting to your surface.

    Cost-effective general lighting solutions, suitable for coastal installations where corrosive elements effect other materials
