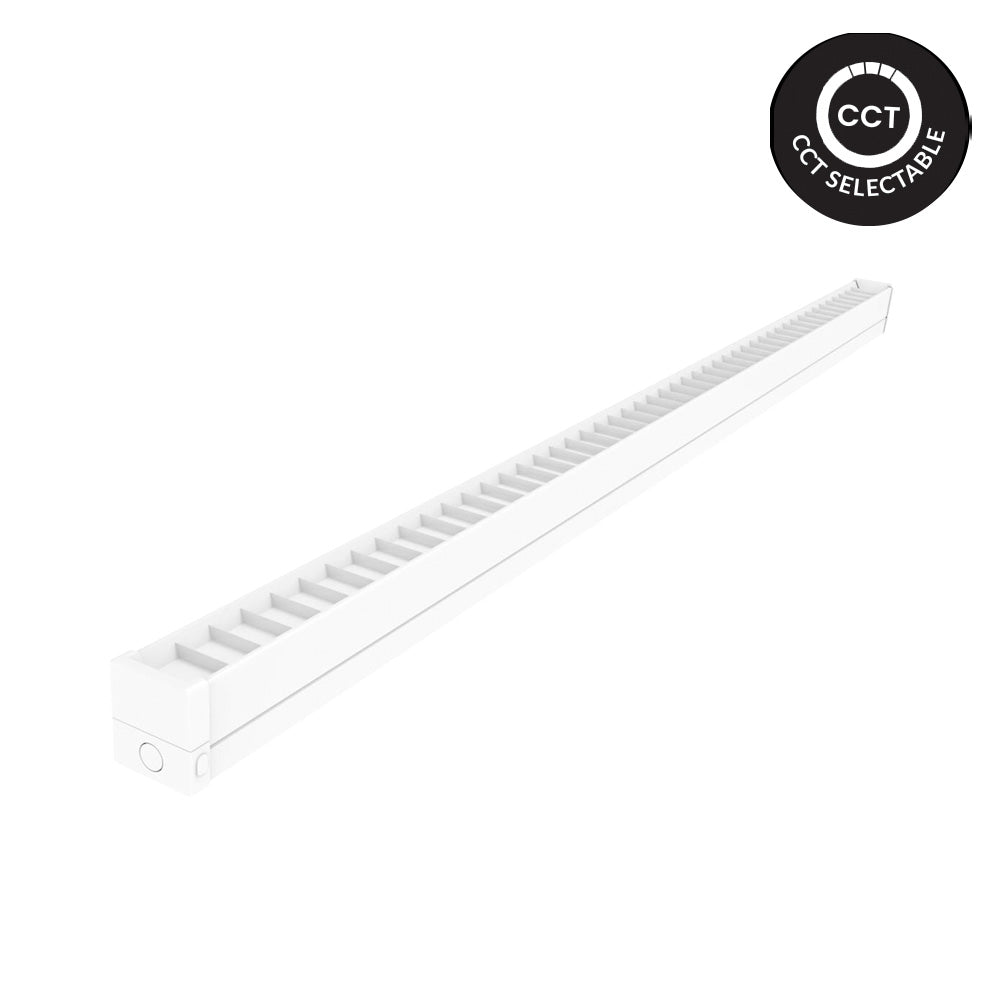

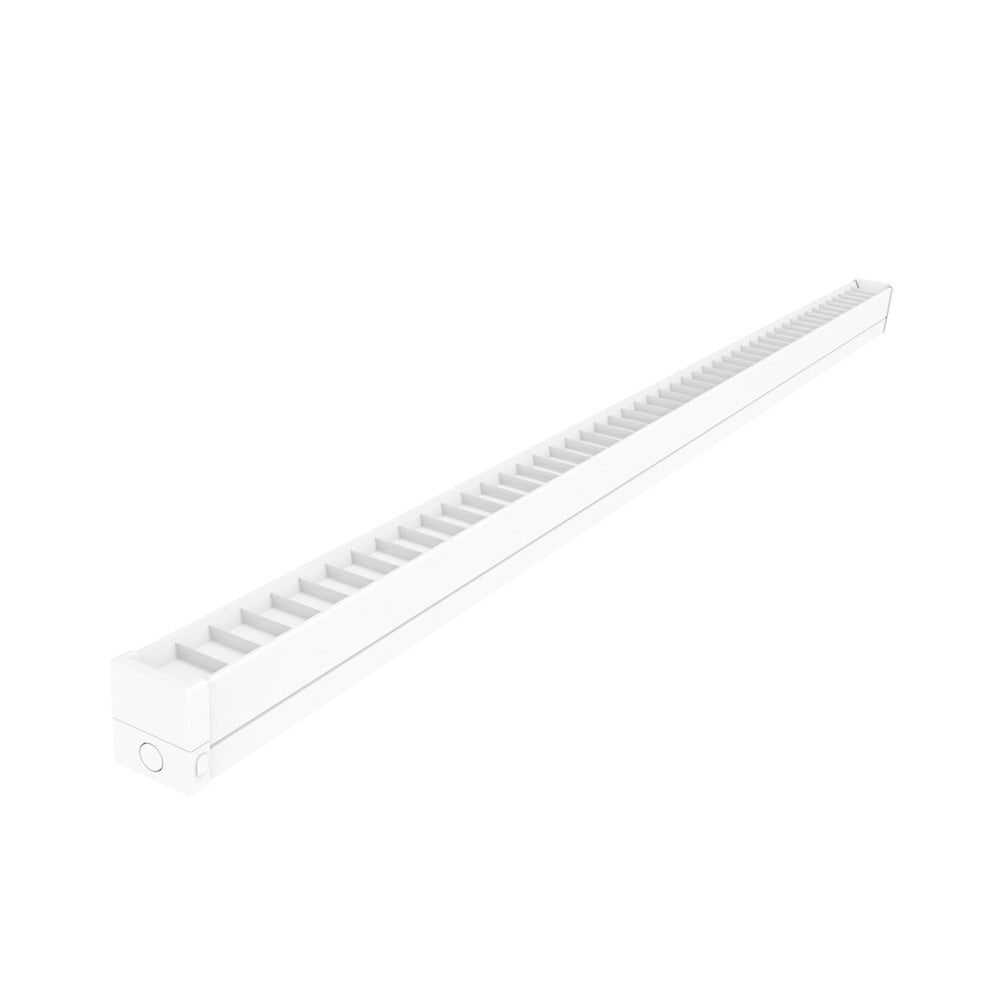

The "Educator," is a premium batten luminaire meticulously engineered to meet the specific lighting demands of educational environments. With its low glare grill and superior light quality, it creates an optimal setting for both students and educators, standing as a testament to advanced lighting solutions that blend functionality, efficiency, and visual comfort.
-
• Material - Aluminium/ Polycarbonate
• Optics - Opal, with Grill reflector
• Colour - White -
General:
• Dimensions(mm) - 1483L x 67W x 73D
• Finish Options:
- Material - Aluminium/ Polycarbonate
- Body Colour - White
• Environment - IP20
• Weight - 1.3kg
• Mounting - Surface or Suspended*
*2m wire suspension kit - 1x set of clips & wire cable(sold separately)
• Cable Entry - 3 (back & both ends)
• Impact Rating- IK08Electrical:
• Ambient Operating Temperature - (-25° ~ +45°)
• Voltage - 230V
• Class - Class || (No Earth Required)
• Wattage - Selectable (30W | 40W | 50W)
• Power Factor - >0.9
• Lumen Efficacy - 100lm/W(+/-5%) @ 4000K
• Lumen Maintenance(L70) - 50,000 Ta25°
• Dimmable - No
Photometrics:
• Lumens (+/- 5%)Wattage Colour Temperature Lumens 30W 3000K 2911lm 30W 4000K 3074lm 30W 6500K 3064lm 40W 3000K 3756lm 40W 4000K 4067lm 40W 6500K 3921lm 50W 3000K 4943lm 50W 4000K 5053lm 50W 6500K 4897lm
• Optics - Opal, with Grill reflector
• Beam Angle - 90°
• Light Source
- SDCM<3
- Integrated SMD LED
• Correlated Colour Temperature - 3000K | 4000K | 6500K (CCT Switchable)
• Colour Rendering Index(CRI)
- CRI - >92
- R9 Value - >50
• Universal Glare Rating - UGR<19 -
• Mounting - Surface or Suspended
