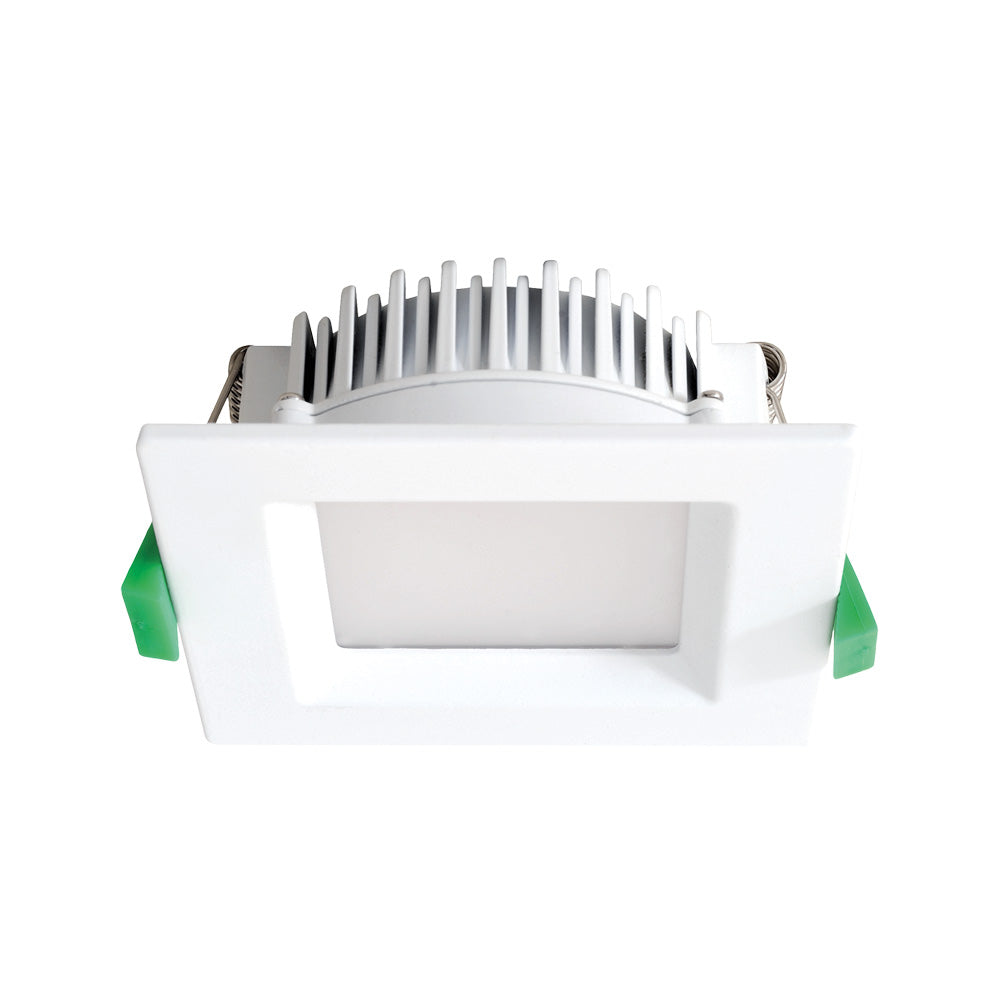

GEO12S - 12W Square Downlight

Code: ICDLS12WCCT-WH

Colour: White
CRI: > 80
Log in to view pricing

Description

Use:
• Application - Residential & Commercial use
• Use - Interior
• Warranty - 5 Years
• L70 - 54,000 hours
• Switching Capacity - 30,000
• IP Rating - IP44

Power:
• Voltage - 230V
• Driver - Complete with coverable driver
• Power Factor - > 0.9

Light output:
• Lamp Type – Integrated LED
• Wattage - 12.2W (including the driver)
• Lumens (CRI - > 80) - 1020lm (3000K) | 1060lm (4000K) | 1040lm (6000K)
• Lumens (CRI - > 90) - 865lm (3000K) | 900lm (4000K) | 885lm (6000K)
• Colour Temperature - 3000K | 4000K | 6000K

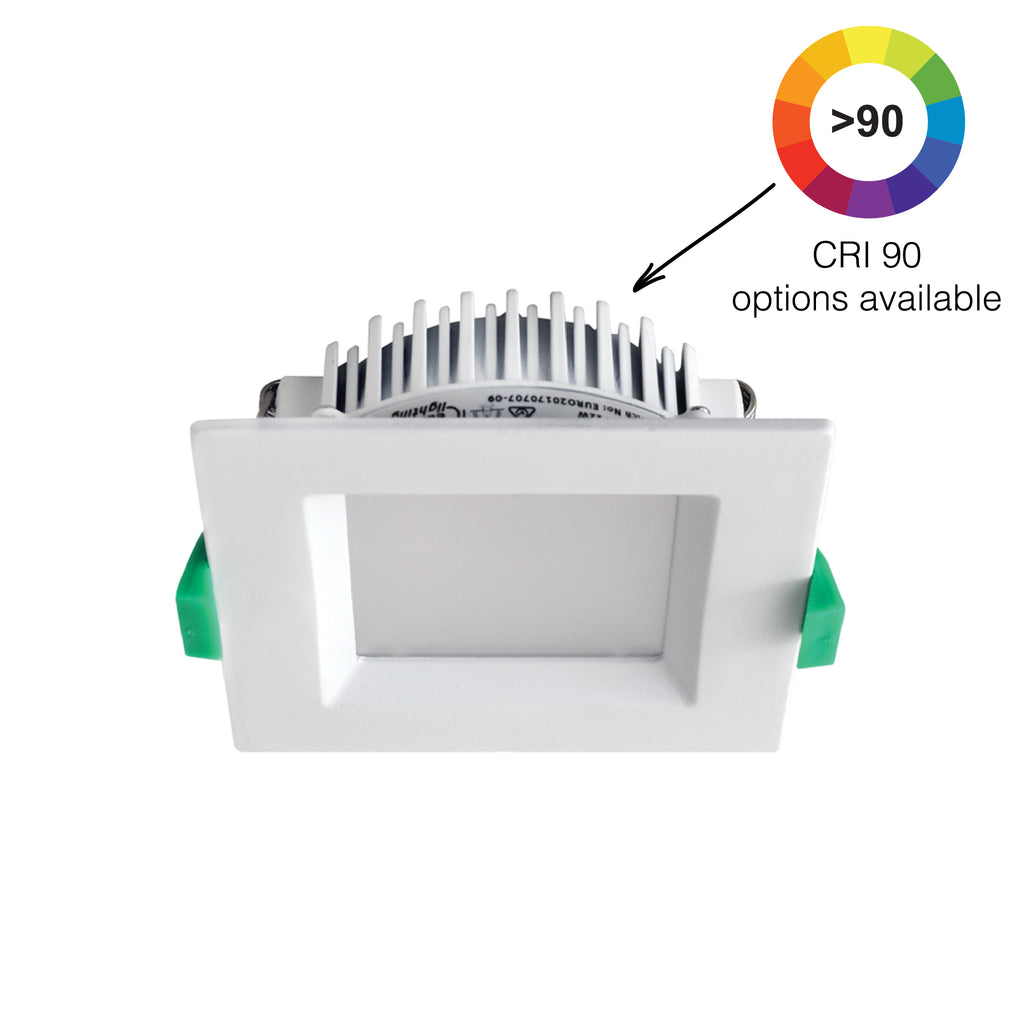

• CRI - > 80 / > 90
• Beam Angle - 90°
• UGR Rating - <19
• Dimmable - Yes

Product info:
• Type - 12W Round Fixed CCT Downlight
• Choose between Warm White (3K), Cool White (4K) & Daylight (6K) to suit application use.
• Change the colour temperature using the switch on the driver.
• Material - Aluminium, corrosion resistant A6063 alloy

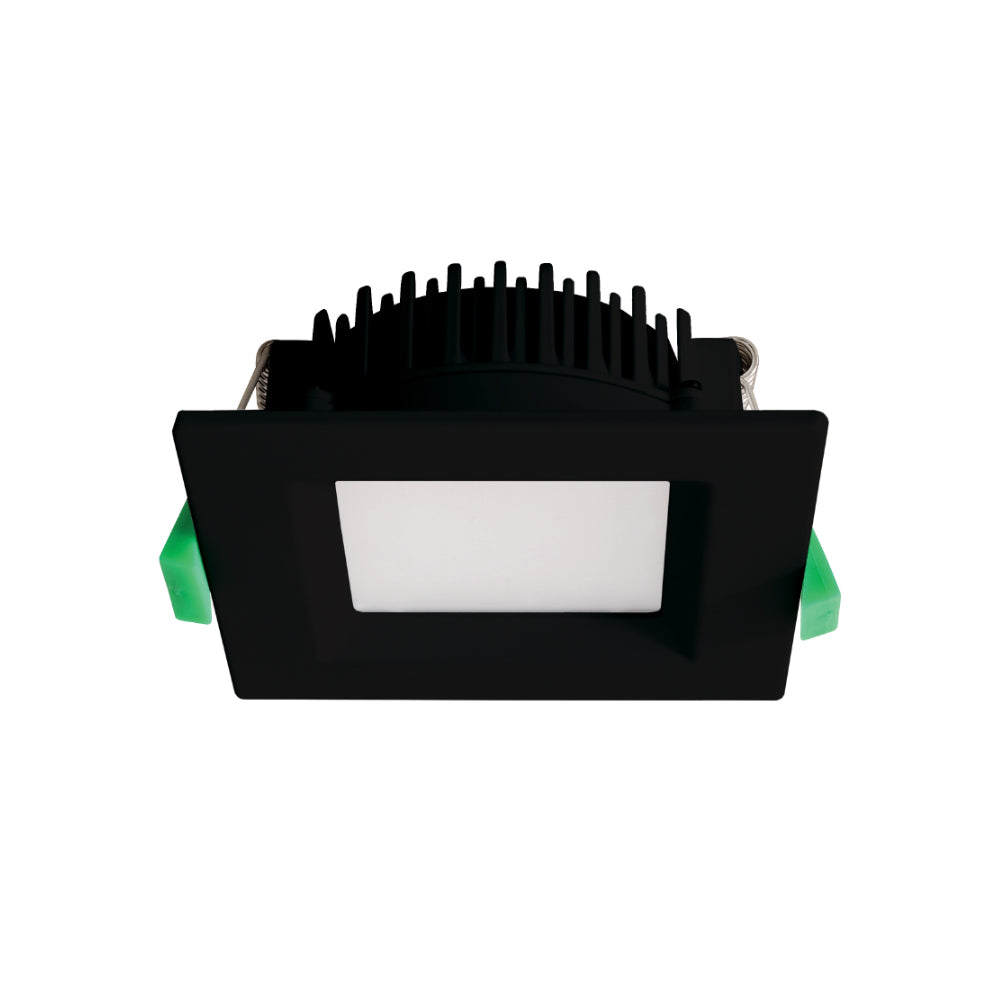

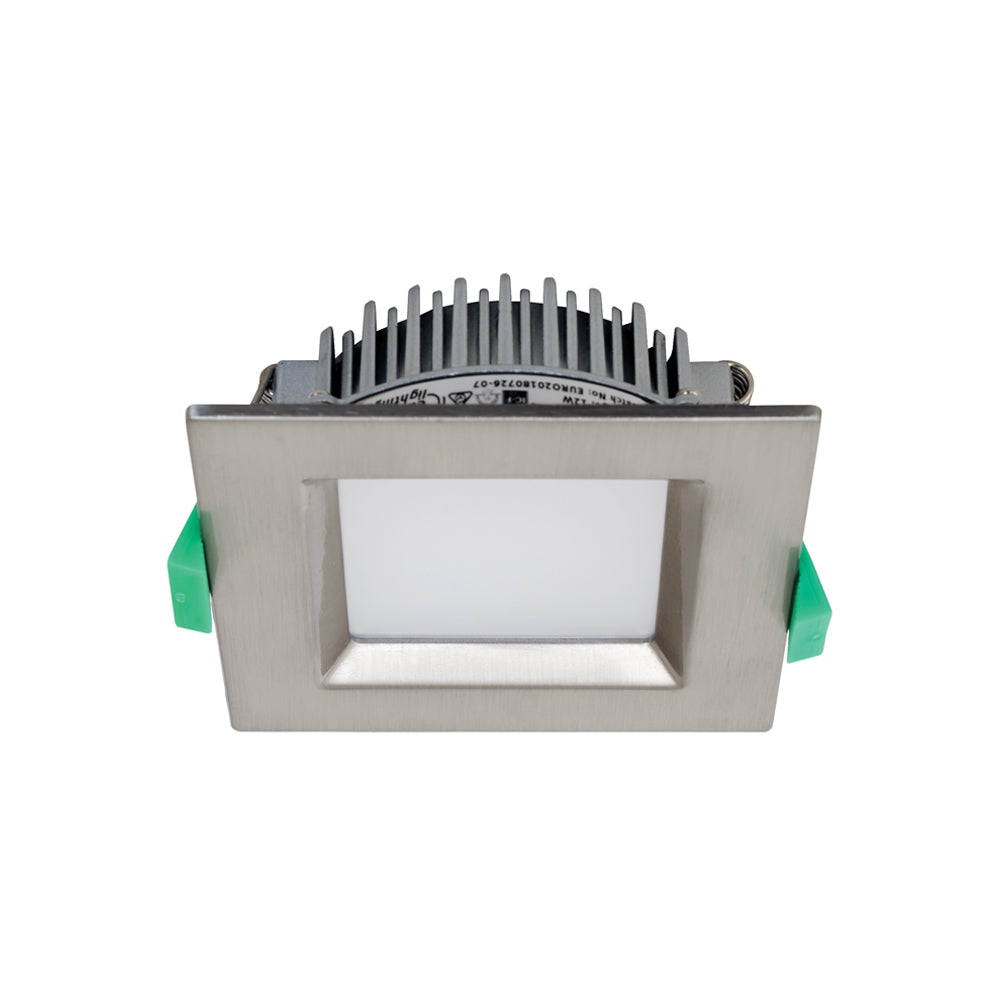

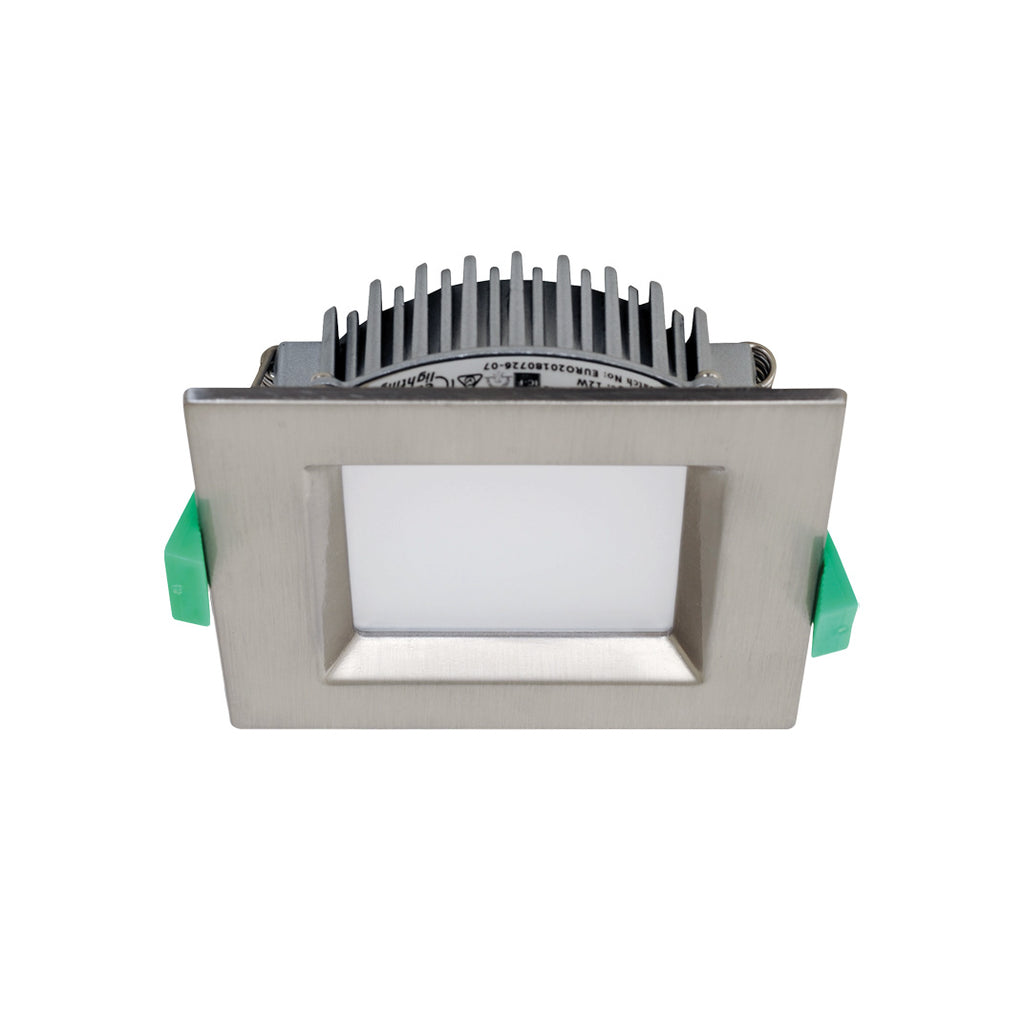

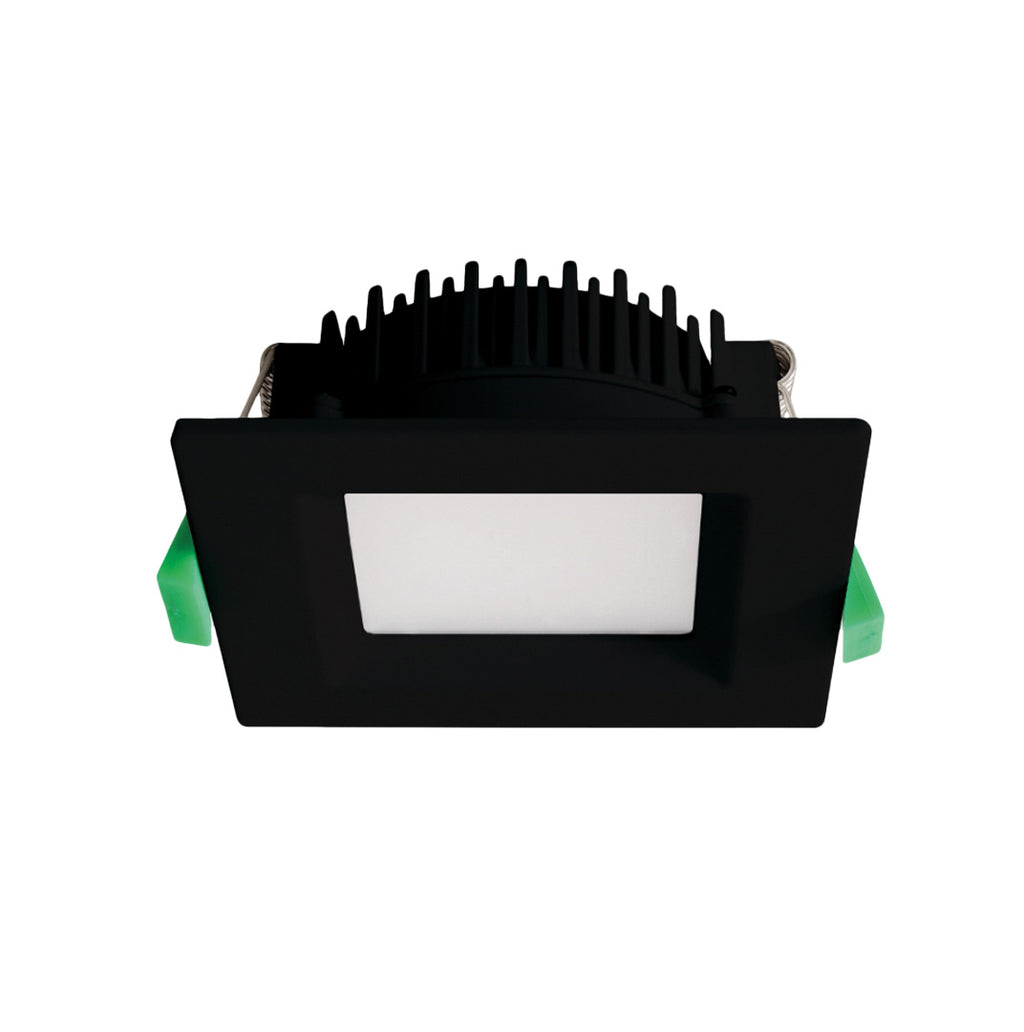

• Colour - White, Brushed Chrome, Black or Silver
• Shape - Square
• Mounting - Recessed

Physical size:
• Dimensions - 100mm x 100mm x 40mmHeight
• Cut-out - From 90-92Ømm
• Rating - IC-F/IC-4
• *HCB: 0mm | *SCB: 0mm | Height of fitting: 40mm


*HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install downlight. You must always allow for heat dissipation.

NB: This model replaces the previous ICDLS12W3K-BCH, ICDLS12W3K-WH, ICDLS12W3K-SIL

NB: Brushed chrome models not suitable for exterior use
