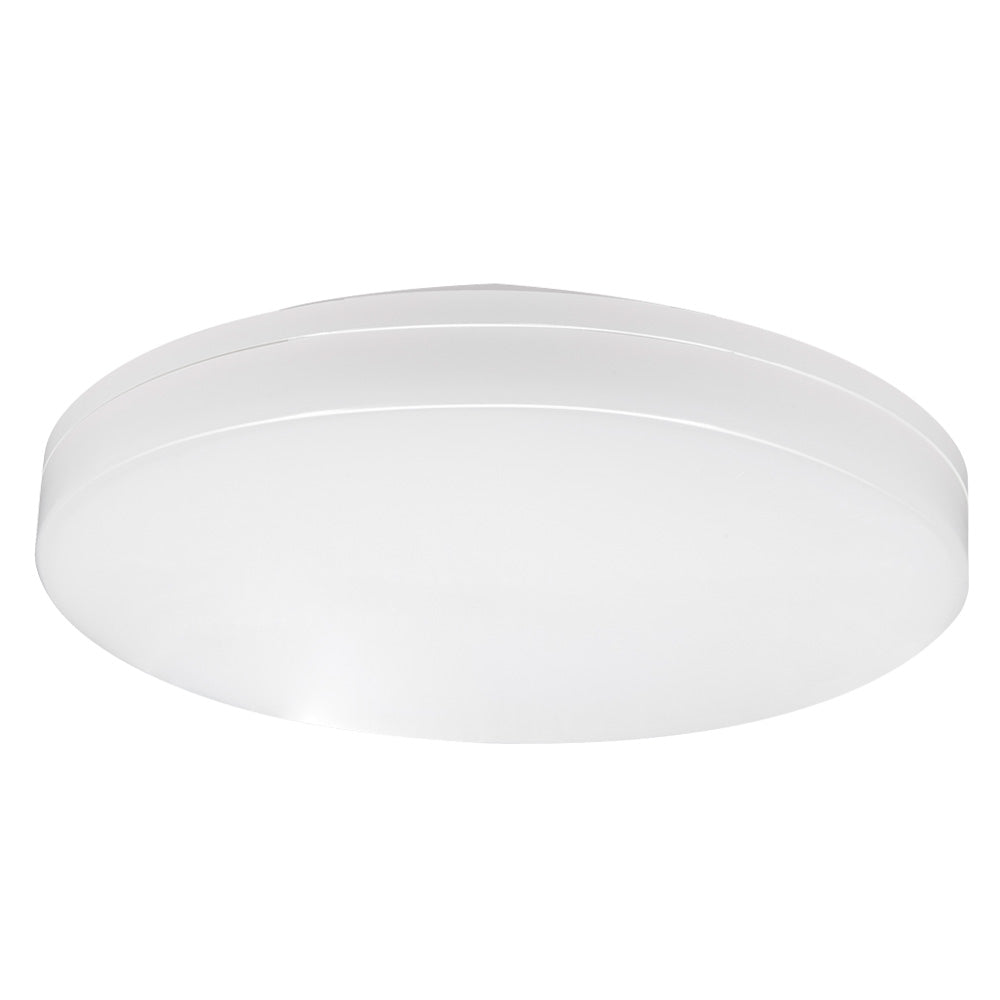

The YY Ceiling Button range offers a cost-effective, tamper-resistant lighting solution, available in three sizes (280mm, 330mm, 400mm) from durable ABS polycarbonate, each luminaire features tri-wattage selection, triac dimmable, and CCT selectability for easy on-site colour adjustment. Installation is quick with centralised cabling and a simple fit bracket.
*For compatible dimmers, see the dimmer compatibility guide on our website under each product SKU

• Material - Polycarbonate Housing & Diffuser
• Optics - Opal
• Colour way - White

General:
• Weight -1.88kg
• Dimensions(mm) - Ø400 x 55H
• Mounting Options - Surface Mounted
• Finish Options:
   - Material - Polycarbonate
   - Diffuser - Polycarbonate
   - Colourways - White
• IP Rating - IP54

Electrical:
• Ambient Operating Temperature - -25°C ~ +45°C
• Voltage - 230V
• Lumen Efficacy(+/-5%) - 120lm/W
• Lumen Maintenance - 30,000hrs(L70)
• Wattage - (Selectable) 24W | 30W | 36W
• Dimmable - Yes


Photometrics:
• Lumens (Flux) - CCT Selectable

• Optics - Opal
• Beam Angle - 115°
• Light Source - Integrated SMD LED
• Colour Temperature - CCT Selectable (3000K | 4000K | 6000K)
• CRI - >80

• Mounting Type - Surface Mounted
