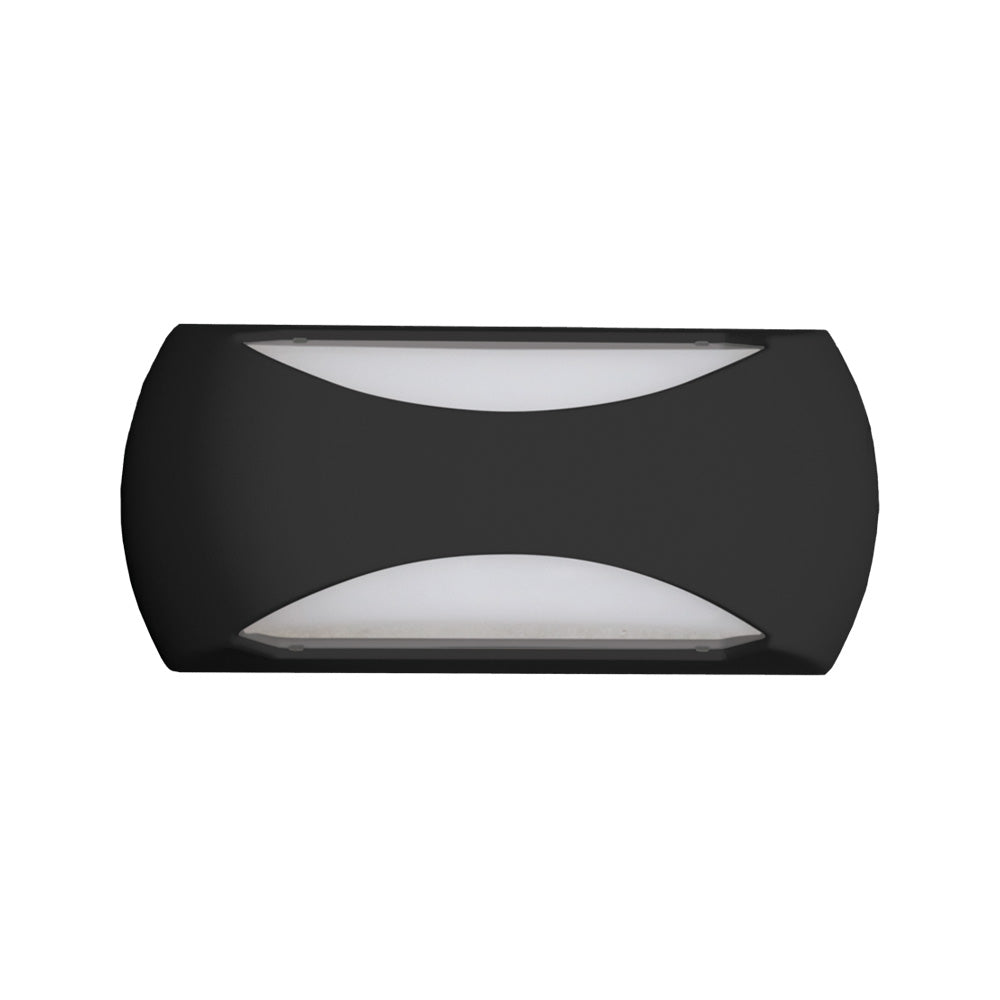

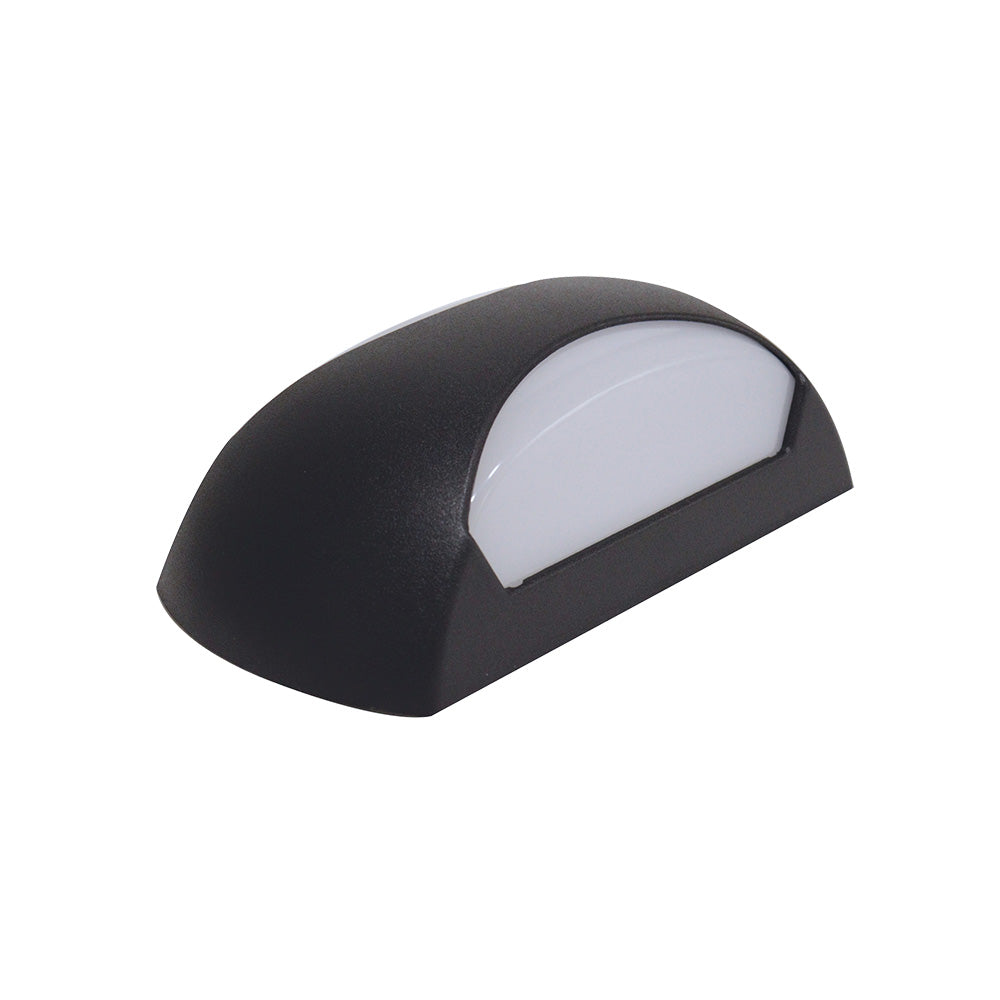

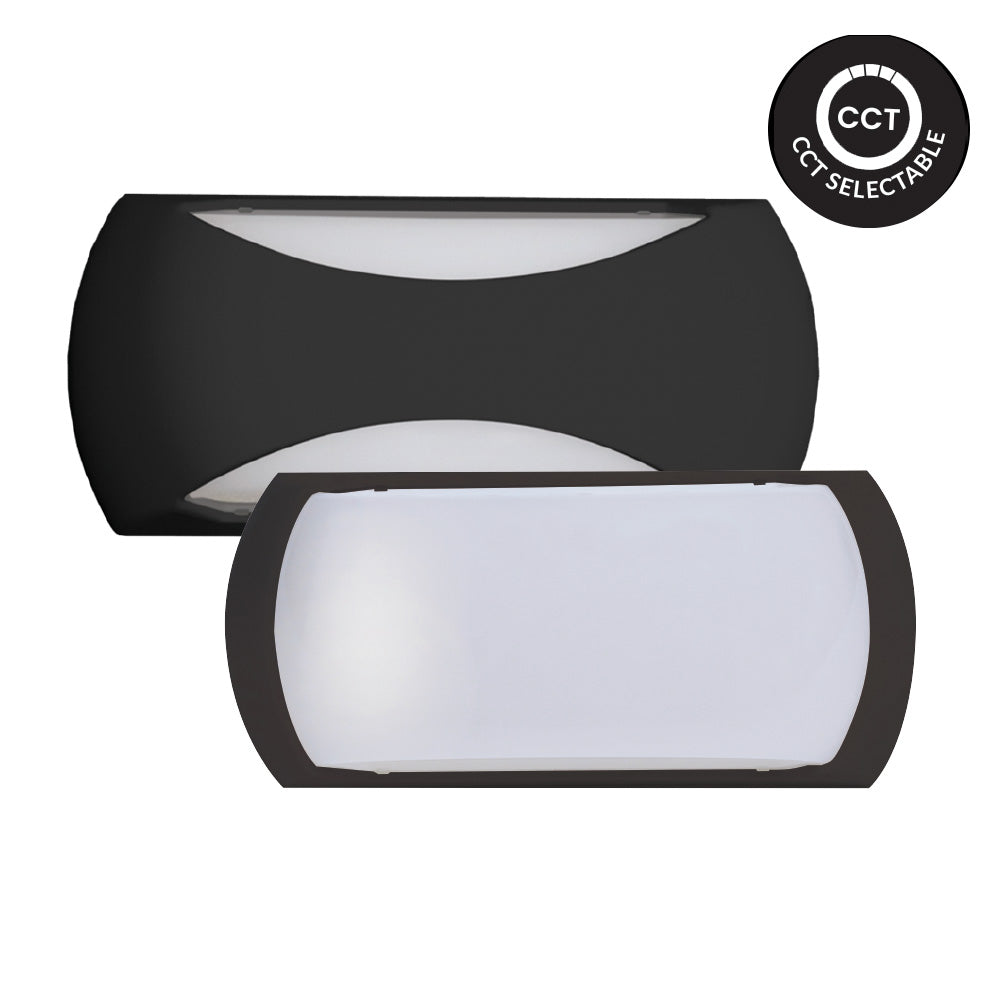

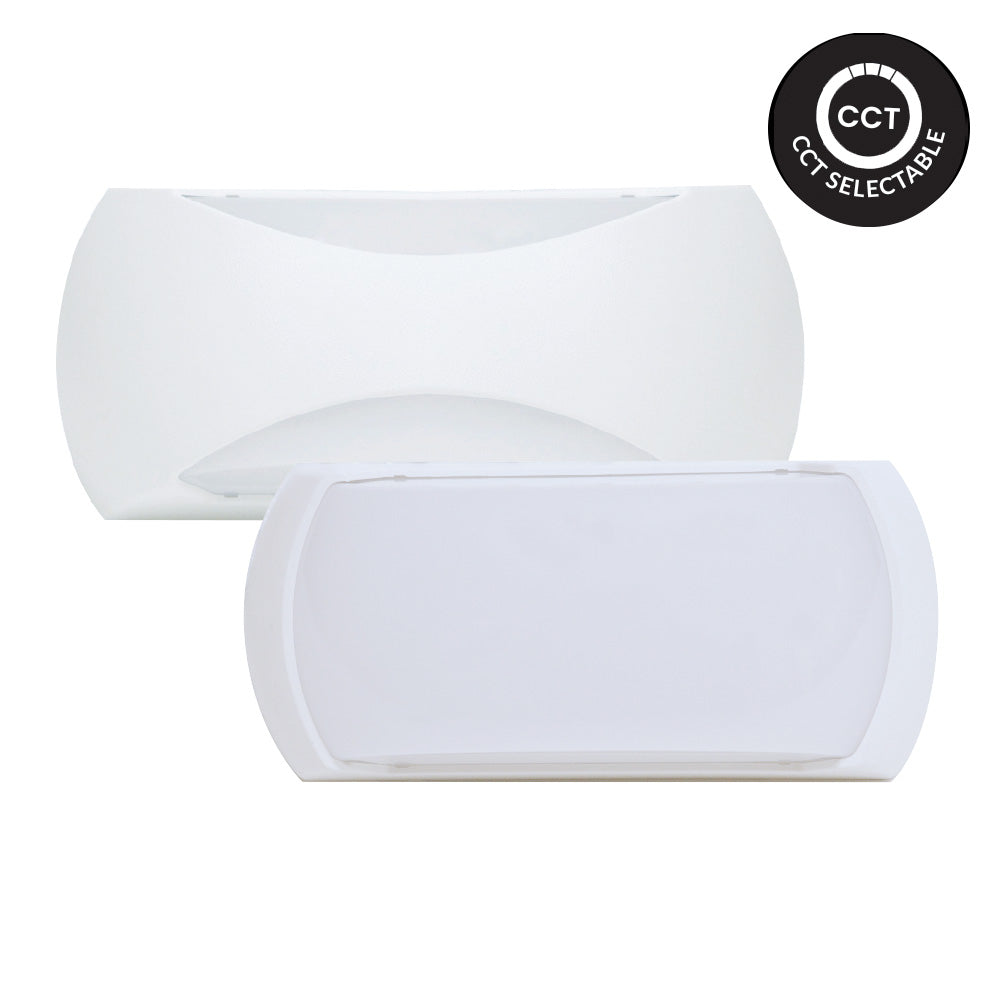

The Ovate Elite + polycarbonate bulkhead family are a versatile and cost-effective outdoor lighting option. Crafted from UV-protected polycarbonate, with an IP rating of IP65. The Ovate bulkhead family are robust and durable in both residential and commercial environments.
UV polycarbonate is also non-corroding, giving excellent performance and service life in coastal locations.
Product Features:
- Suitable for coastal installations
- IP65 high exterior weather protection rating
- Models to suit you situation: Plain, eyelid, dimmable, sensor, tri colour
- Available in two trim colours: White, Black
- Operating temperature -20 degrees through to 50 degrees Celsius.
Specification:
• Warranty - 5 Years
• L70 - 30,000hrs
• IP Rating - IP65
• Operating temp - -20°C to +50°C
Power:
• Voltage - 230V
• Driver - Built-in
• Double Insulated - Yes
Light output:
• Lamp Type - Integrated LED
• Wattage - 12W
• Lumens - 500lm | 650lm | 600lm
• Colour Temperature - 3000K | 4000K | 5000K Switchable
• CRI - >80
• Beam Angle - 130°
• Dimmable - No
Product info:
• Type - X Tri-colour Bulkhead
• Material - UV resistant Poly-carbonate
• Colour - Black and White Trims included
• Mounting - Surface Mounted
• IK Rating - IK08
Physical size:
• Dimensions (mm) - 230W x 105H x 72DProduct Reference:
• Catalogue 2021 - Page 47
• Catalogue 2022 - Page 28
