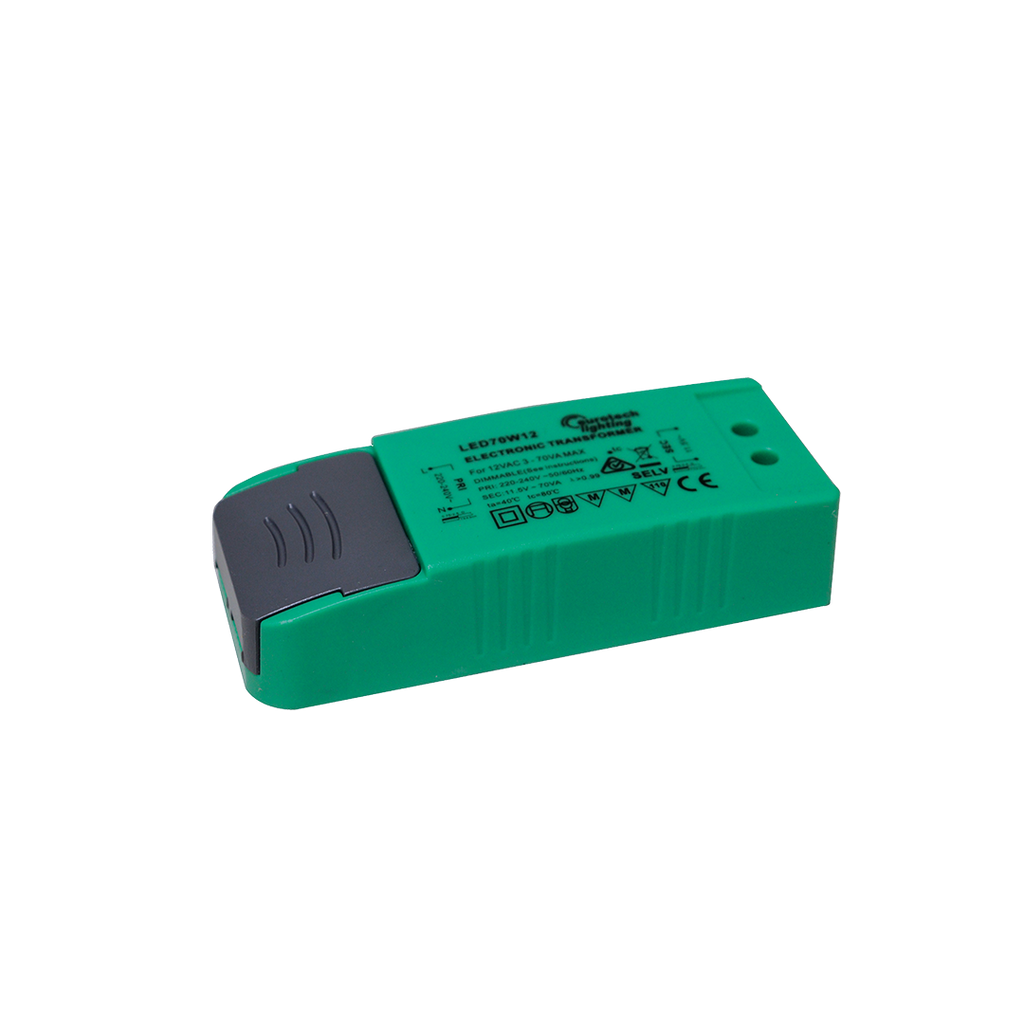

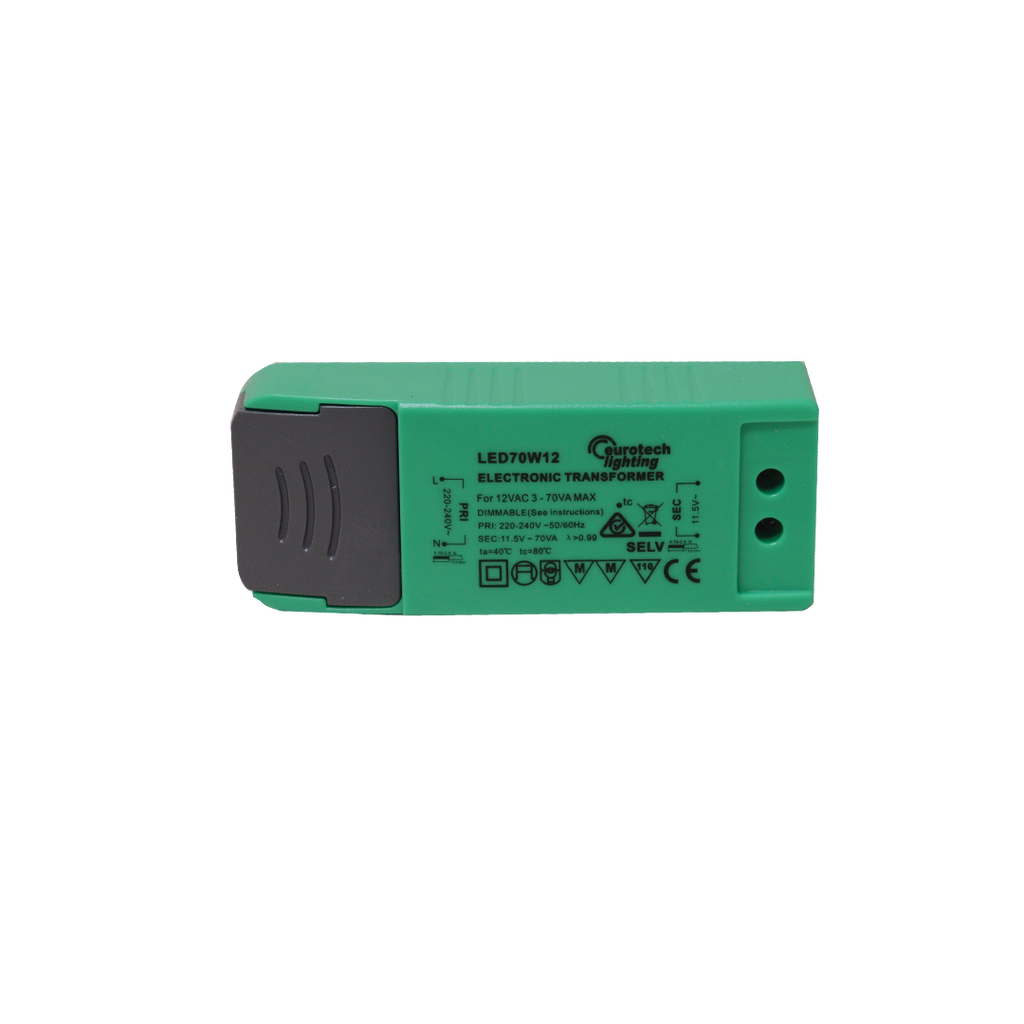

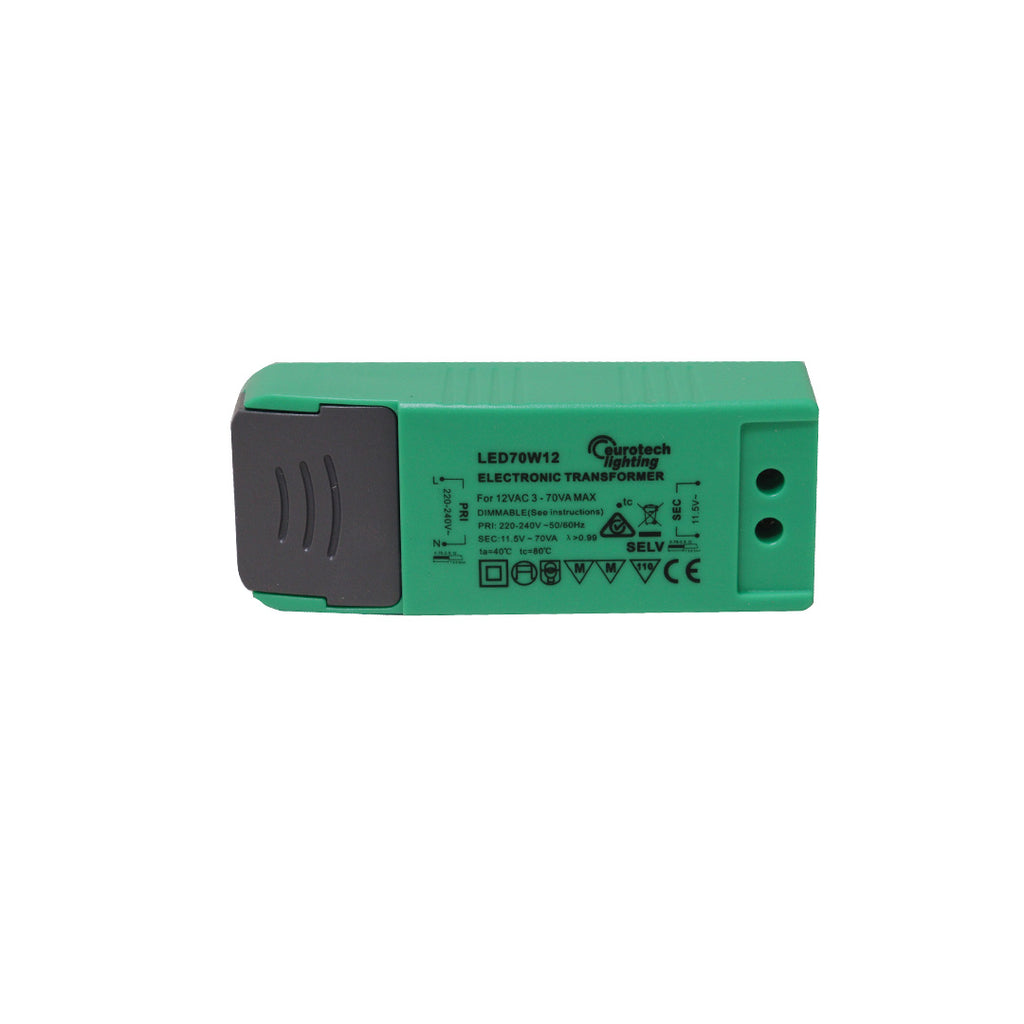

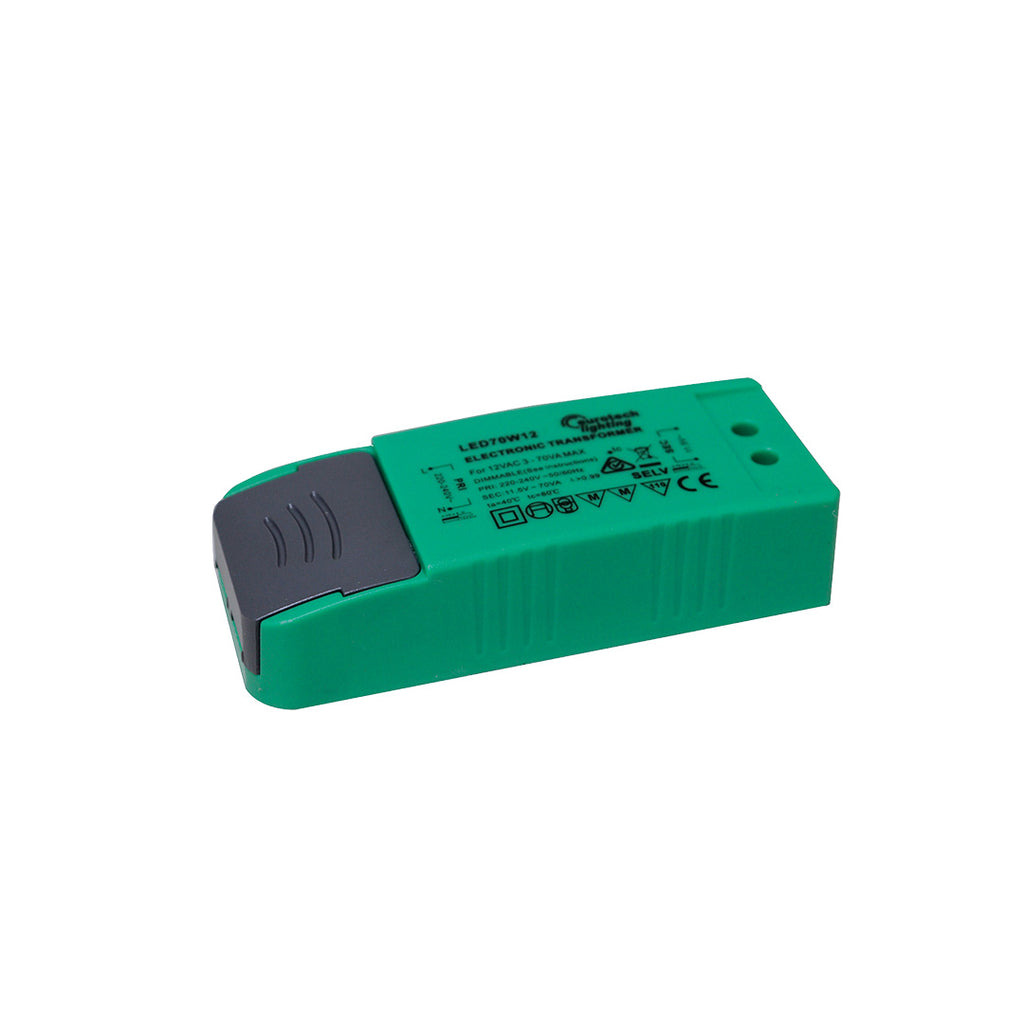

Halogen and Retrofit LED Electronic Transformer

Code: LED70W12

Log in to view pricing

Description

Use:
• Application - Residential
• Use - Interior
• Warranty - 2 Years

Power:
• Voltage - 12V AC 3-70VA electronic transformer
• Suitable for use with Halogen & 12V AC LED Lamps
• Power Factor - > 0.9
• Wattage - 3-20W 12V AC LED retrofit lamp loads
• Wattage - 0-70W 12V AC halogen lamp loadss
• Dimmable for Halogen loads only

Product info:
• Type - Electronic LED Driver
• Material - Aluminium 6063
• Colour – Silver
• Shape - Rectangular
• Large 230V terminals can fit 2 x 2.5mm² cable
• Large 12V terminals at opposite end


Physical size:
• Dimensions (mm) - 114L x 45W x 29H

Note: Ideal for halogen downlight installations where the customer may wish to replace the halogen lamps with retrofit LEDs in future.
