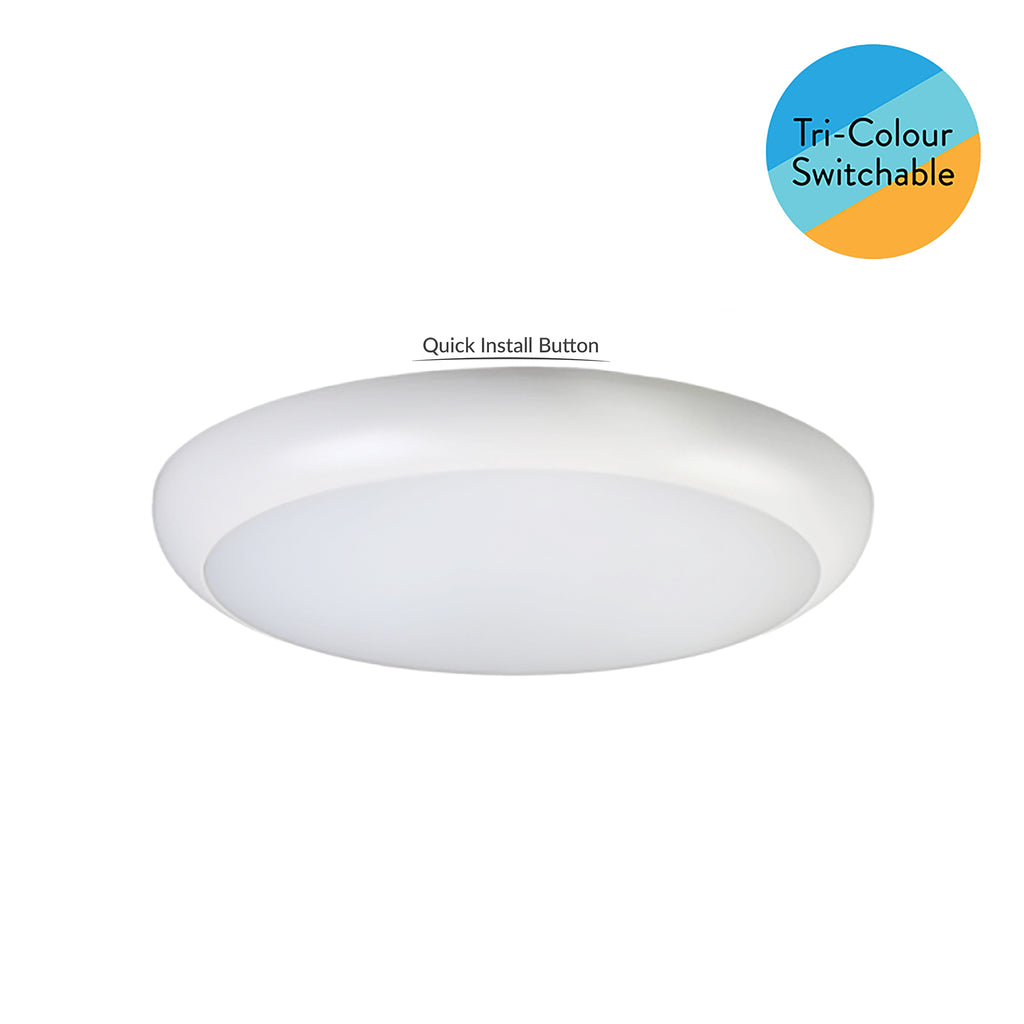

Easy B - 24W LED Button

Code: QB24

Log in to view pricing

Where to Buy

Downloads

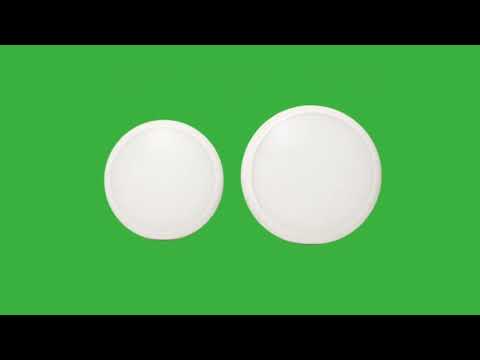

  • The Easy B Ceiling Light Button is the ultimate timesaver for installation. Its screw-through base, centralised cable entry, push terminals, and hinged LED board with no screws make installation quick and easy. It is also tricolour switchable, dimmable and has 2 size options 18W and 24W versions. It is designed to get you in and out of jobs quickly and efficiently. This light button is perfect for both residential and commercial settings, and it is a great solution for those who want to save time during the installation process.

  • • Material - UV resistant Polycarbonate body & diffuser
    • Colour - White
    • Shape - Round

  • General:

    • Dimensions(mm) - 330mm x 74D
    • Material - UV Resistant Polycarbonate
    • Body Colour - White
    • Weight - 1.27kg
    • Mounting Options - Surface
    • IP Rating - IP65

    • IK Rating - IK08


    Electrical:
    • Voltage - 230V
    • Frequency - 50Hz
    • Wattage - 24W
    • Ambient Operating Temperature - (-20° ~ +50°)
    • Class II - Double Insulated , no earth required
    • Lumen Efficacy - >100lm/W (+/- 5%)
    • Lumen Maintenance (L70) - 30,000hrs
    • Dimmable - Yes

    Photometrics:

    • Colour Temperature - CCT Selectable (3000K / 4000K / 6000K)
    • Lumens ( +/- 5%)

    Colour Temperature   Lumens
    3000K 1646lm
    4000K 1755lm
    6000K 1637lm

    • Optics - Opal
    • Beam Angle - 120°
    • Light Source - Integrated SMD LED
    • CRI - >80

  • • Mounting - Surface mounted
