• Material - Aluminium + PC
• Optical Cover/Lens Type - Opal
• Colour – White

General:

• Dimensions(mm) - 1200 x 83 x 32
• Material - Body: Aluminium
                    Diffuser: PC
• Weight - 600g
• Mounting Options - Surface Mounted
• IP Rating - IP40

Electrical:
• Voltage - 230V
• Wattage - Wattage Selectable 20W | 30W | 40W
• Operating temp - -20°C > + 45°C
• Class - Class I
• Double Insulated - No
• Lumen Efficacy - 120lm/W (+/- 5%)
• Dimmable - No


Photometrics:

• Colour Temperature - CCT Selectable (3000K / 4000K / 5000K/ 6500K)
• Lumens ( +/- 5%)

• Lumen Maintenance (L70) – 54,000 hours
• CRI - >80
• Optics - Frosted Opal
• Beam Angle - 120°

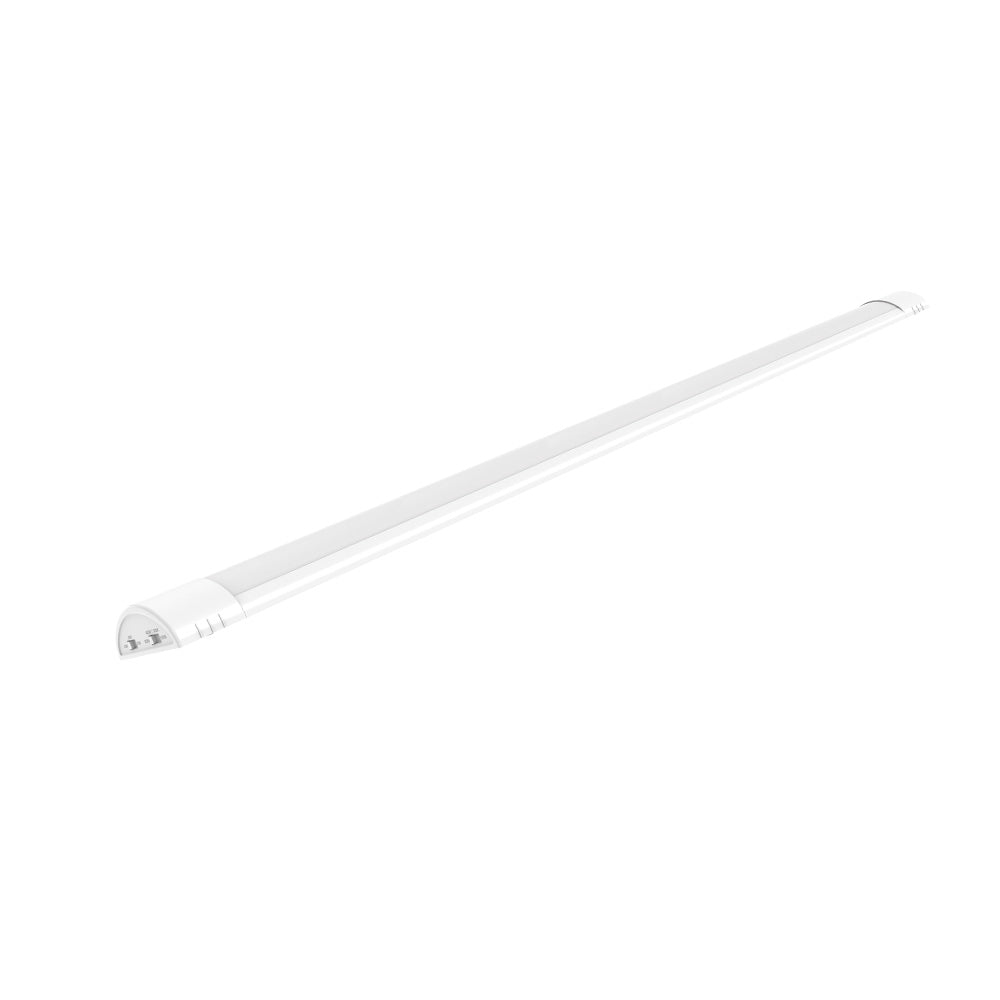

Product info:
• Type - LED CCT Slim Batten

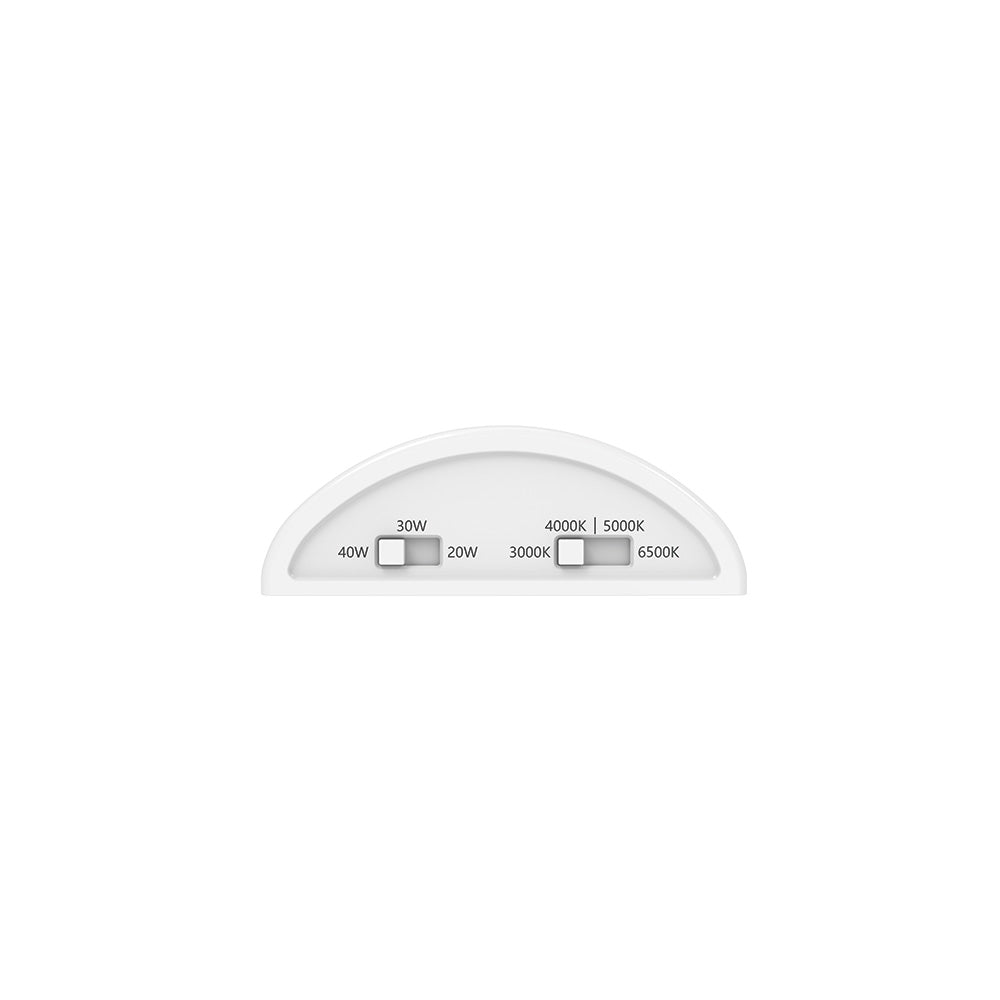

• 3 x Wattage Selectable
• 4 X CCT Selectable

• Mounting - Surface
Flush mount clip system designed to eliminate the gap between the back of each fitting, to the surface they are installed on. By creating flush mounted clips, we can eliminate excess shadowing cast from the body of each fitting. Having a true flush mount clip system with our slim battens creates a clean sleek look when installed/fitted onto flat surfaces.

Central rear cable entry point was a “must have” feature when creating our slim battens. We have taken install times into consideration to ensure our range of slim battens can be installed efficiently. Each fitting has a recessed channel along back of fitting to provide cable entry along entire fitting, also allowing for excess cable to be hidden.
