GEOCTA - Remote Controlled Downlight

Code: ICDLR12WCTA-BCH

Colour: Brushed Chrome
Log in to view pricing

Where to Buy

Downloads

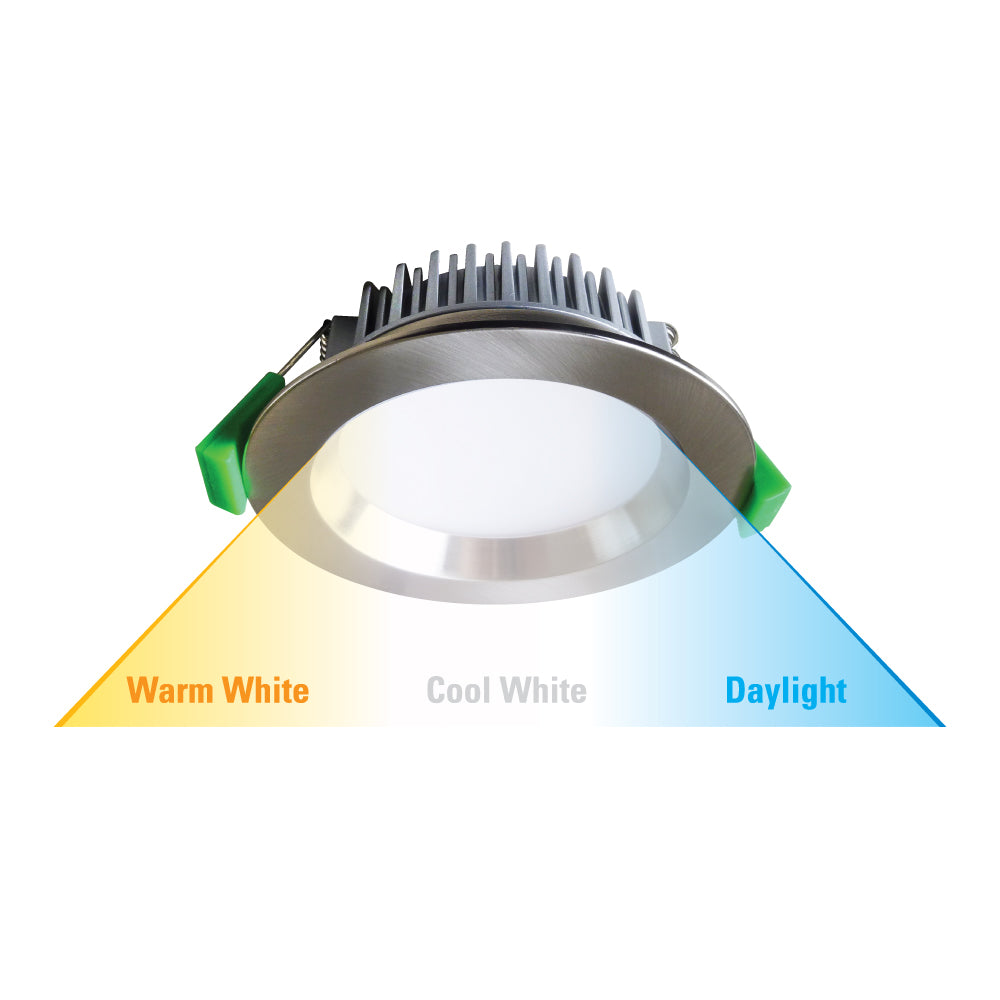

  • Have flexibility and control over your lighting.  The CTA GeoLED downlight is a remote-controlled downlight that puts you in full control of the lighting look in your space at any given time.

    Easily change the brightness and colour temperature from warm white through to cool white, all from the wireless remote.  Easy to control and install.  Control up to 50 lights across four different channels.





  • Product info:
    • Type - Colour Temperature Adjustable Downlight
    • Control colour temperature and brightness (Dimming) from a remote control.
    • Material - Aluminium, A6063 alloy
    • Colour - White or Bruhsed Chrome
    • Shape - Round
    • Mounting - Recessed





  • Use:
    • Application - Residential or Commercial use
    • Use - Interior or Exterior (white only)
    • Warranty - 5 year
    • L70 - 54,000 hours
    • Switching Capacity - 30,000
    • IP Rating - IP44

    Power:
    • Voltage - 230V
    • Driver - Complete with coverable driver

    Light output:
    • Lamp Type – Integrated LED
    • Wattage - 12.2W (including driver)
    Lumens (CRI - > 80) - 1020lm (3000K) | 1060lm (4000K) | 1040lm (6500K)
    • Colour Temperature - 3000K to 6500K
    • CRI - >80
    • Beam Angle - 90°
    • Dimmable - Yes
     Max ambient operating temperature: +45°C

    Product info:
    • Type - Colour Temperature Adjustable downlight
    • Control colour temperature and brightness (Dimming) from a remote control
    • Material - Aluminium, corrosion resistant A6063 alloy
    • Colour - White or Brushed Chrome
    • Shape - Round
    • Mounting - Recessed

    Physical size:
    • Dimensions - 108Ømm x 40mmHeight
    • Cut-out – 82-98Ømm
    • Rating - IC-F/IC-4
    • *HCB: 0mm | *SCB: 0mm | Height of fitting: 40mm

    Product Reference:
    • Catalogue 2021 - Page 13
    • Catalogue 2022 - Page 91

    *HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install downlight. You must always allow for heat dissipation.

    Note:
    • Purchase CTAREMOTE and control your LED Downlights via a physical handheld remote that can be wall-mounted for easy storage/access.
    • Control up to 40 CTA Downlights across 4 separate channels from one remote.
    • Group multiple downlights (e.g. into rooms) so they can be controlled together, independent of other rooms.
    • Nightlight mode for dim overnight hallway lighting, children’s rooms, security.
    • Fast and easy control of room ambience using just one lighting product.
    • Excellent solution for homes, shops, restaurants, bars, boardrooms, offices.
    (CTAREMOTE is sold separately.)

    *CTA downlights must be used in conjunction with a remote which overrides wall switch use.  Wall switches must remain turned on for CTA lights and remote to operate.

  • Physical size:
    • Dimensions - 108Ømm x 40mmHeight
    • Cut-out – 82-98Ømm
    • Rating - IC-F/IC-4
    • *HCB: 0mm | *SCB: 0mm | Height of fitting: 40mm

    *HCB & SCB clearances of 0mm does not mean that you can drill a hole in solid concrete or wood and install downlight. You must always allow for heat dissipation.

    Note:
    • Purchase CTAREMOTE and control your LED Downlights via a physical handheld remote that can be wall-mounted for easy storage/access.
    • Control up to 40 CTA Downlights across 4 separate channels from one remote.
    • Group multiple downlights (e.g. into rooms) so they can be controlled together, independent of other rooms.
    • Nightlight mode for dim overnight hallway lighting, children’s rooms, security.
    • Fast and easy control of room ambience using just one lighting product.
    • Excellent solution for homes, shops, restaurants, bars, boardrooms, offices.
    (CTAREMOTE is sold separately.)
